Description

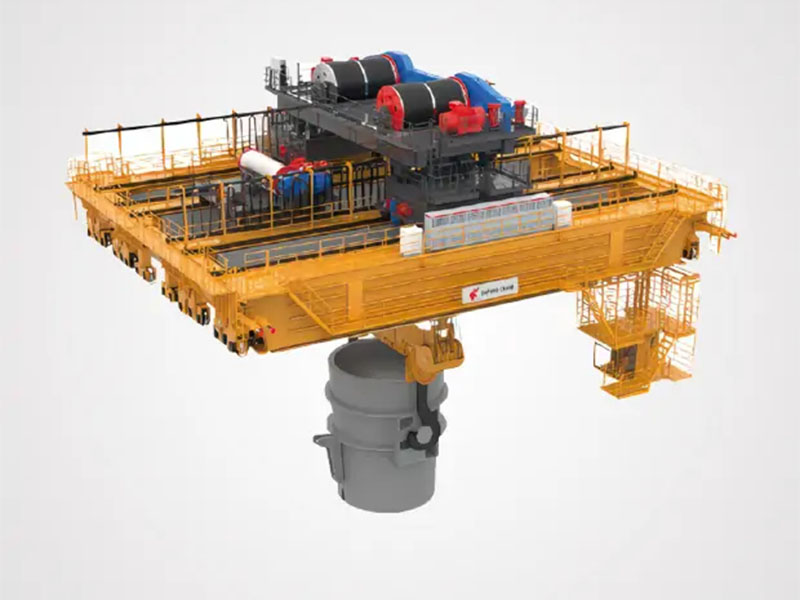

The casting crane is the main equipment in the steelmaking and continuous casting process, which is mainly used for charging the converter and mixing molten iron across the converter; The ladle is lifted to the refining furnace at the refining span or the ladle turret at the molten steel receiving span.

From the overall structure, the casting cranes can be divided into five categories: four beam four rail double small car, four beam six rail double small car, double beam double rail single small car, double beam four rail double small car, double beam double rail sub small car.

According to the structural form of the main lifting reducer, the composition of the casting crane is mainly divided into the overall large reduction type, the independent large reduction type, the three reduction type, the double reducer double drum type, the double reducer single drum type, and the planetary reducer type (these types can also be divided into various forms).

Application

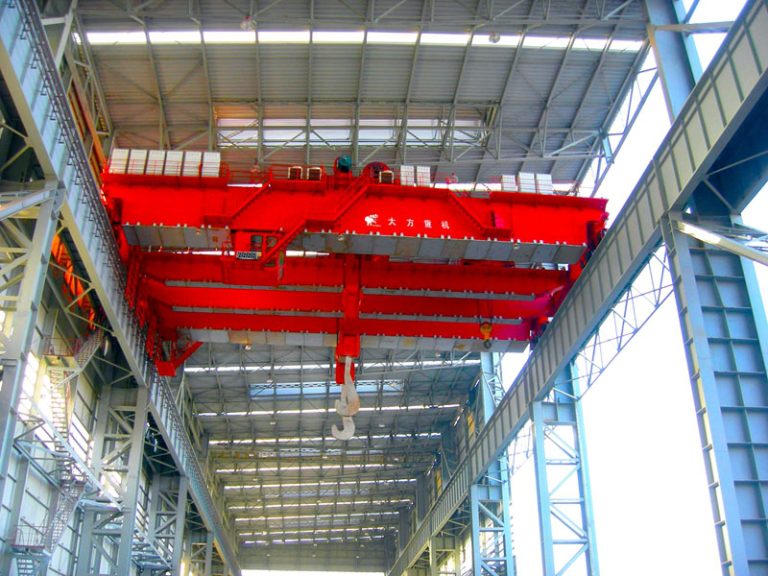

Steel plant casting cranes are essential in the heavy-duty tasks of moving molten steel, heavy castings, and other high-temperature materials in steel production environments. These cranes are specifically designed for the harsh conditions found in steel plants, where high heat and heavy loads are common. They are ideal for tasks such as lifting steel ingots, ladles, and billets, as well as transporting finished products between different stages of production.

Feature & Advantages

• Each mechanism is equipped with adjustable speed design to adapt to various working conditions;
• The lifting device supports 360-degree rotation, enhancing operational flexibility;
• The gantry hook distance can be adjusted according to the needs, meeting different lifting requirements;
• Equipped with intelligent overload protection and real-time alarm systems to ensure operational safety;
• Integrated high-precision load weighing, PLC control, fault detection, and data recording/printing functions;
• Built-in anti-collision system to prevent interference between cranes with the same span.
• Our casting cranes are characterized by technological innovation, reliable performance, durable design, and easy maintenance. We also offer the following customized features upon customer request:
• Rotatable gantry hook lifting device for enhanced operational convenience;
• Adjustable hook distance of the gantry lifting device to accommodate various lifting scenarios;
• Gantry lifting device with rigid guide posts to improve lifting stability;
• Real-time weighing and display functions for precise monitoring.

Parameter

Lifting Capacity(t)		200/50	225/65	240/80	280/65	320/80
Working Class		A7	A7	A7	A7	A7
Span(m)		28	27	22	21	24.5
Lifting Height	Main hook	26	32	25	24	28
	Auxiliary hook	26	34	27	26	32
Speed	Main hook	6	11	7	10	7.5
	Auxiliary hook	10	11	9.6	12	10
	Main Trolley	41	41	35	30	29
	Auxiliary Trolley	38	39.5	38	39	39
	Crane	78	84	80	76	58
Dimensions (mm)	H	6900	7000	7000	7600	7800
	H1	6000	5990	5650	6400	6500
	H2	1650	1400	1350	1350	1500
	B	1700	17300	18500	19200	19500
	B1	10000	10100	11250	12000	12500
	B2	3200	3300	3800	3800	5000
Limit dimestion (mm)	b	450	450	450	500	500
	H3	6000	5800	5500	5900	6000
	H4	1000	1000	1500	1500	1700
	S1	2600	2500	2800	3200	3300
	S2	3000	3000	3200	3500	3500
	S3	2000	2200	2400	2400	2600
	S4	1600	1600	2800	2800	3000
Max wheel load(kN)		530	550	545	595	650
Steel track recommended		QU120
Power source		3-Phase A.C. 380V 50Hz

Company Strength

1. Industry Position

Founded in 2006, Dafang Heavy Machinery covers an area of 1,580 acres and employs over 2,600 people. With an annual sales revenue of 3.566 billion RMB, the company focuses on two main business sectors: lifting machinery and steel structures. Major products include single and double girder bridge and gantry cranes, electric hoists, steel structure bridges, prefabricated buildings, and industrial plants. Dafang serves critical sectors such as military industry, aerospace, nuclear power, offshore engineering, metallurgy, and mining. Its products are exported to over 100 countries and regions, including the United States, Russia, and Southeast Asia.

Annually, Dafang manufactures 30,000 single-girder cranes, more than 12,000 double-girder and gantry cranes, and 30,000 electric hoists. Based on production scale, sales volume, and brand recognition, the company ranks among the top three in China’s crane industry.

2. Core Technologies

Dafang’s R&D team consists of over 260 members, including 104 with senior or intermediate engineering qualifications. The company invests 3.8% of its annual sales into technology development. It has obtained 12 international invention patents, 50 national invention patents, 415 utility model patents, and achieved 43 scientific and technological milestones. Dafang was the first in the industry to adopt anti-sway and automatic positioning technologies.

In 2016, Dafang became the first enterprise in Henan Province to implement smart crane applications and to introduce remote monitoring technology. The company also developed the multifunctional brewing crane, filling a domestic market gap. In 2021, Dafang was the first in the industry to be certified for unmanned intelligent cranes. In 2022, it undertook a project for a tower crane at a commercial satellite launch site.

3. Manufacturing Capability

Dafang Heavy Machinery is equipped with advanced in-house designed manufacturing equipment, including 1,500-ton press grooving machines, extrusion machines, and roller machines. The company has established leading domestic workshops, including an electrical assembly line, steel pre-processing line, paint finishing line, and China’s first practical single-girder lean production line. Precision machinery includes imported German NILES CNC gear grinding machines and Japanese MAZAK machining centers.

Dafang strictly follows refined manufacturing processes, adhering to the principle of “doing it right the first time, zero defects.” This commitment to quality is deeply ingrained in every employee, ensuring that every product delivered meets the highest standards.

4. Service Assurance

Dafang upholds a “comprehensive, high-quality” service standard, providing users with fast, attentive, and thorough one-stop services. With 24/7 online support, choosing Dafang means complete peace of mind. Just tell us what you need—we’ll take care of the rest.
