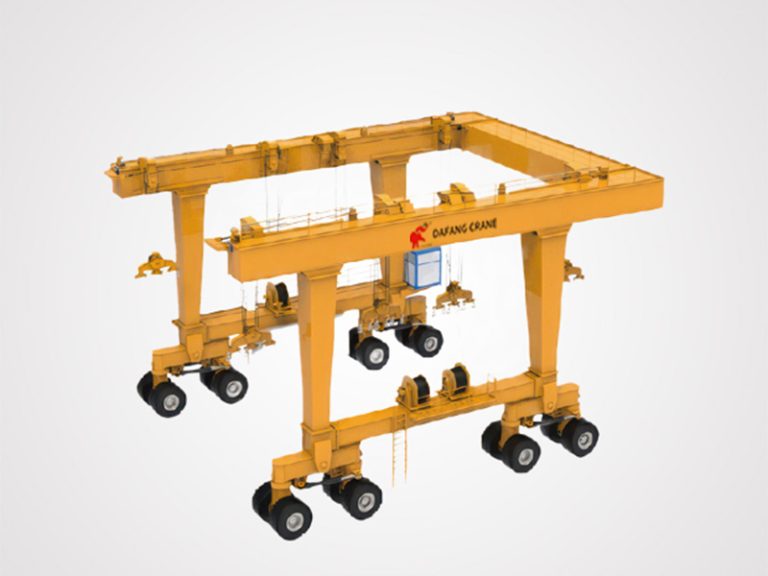

The Rubber-Tired Gantry Crane (RTG) is an efficient container handling equipment widely used in ports and container yards. Its main structure includes the main beam, support legs, tire-based mobility system, and lifting trolley.
The main beam is the core load-bearing component of the RTG crane, with excellent rigidity and stability, capable of bearing large loads. Rails are installed on top of the main beam for the movement of the lifting trolley. The support legs are located at both ends of the main beam, providing stability to the entire structure and ensuring its stability during operation. The bottom of the support legs is equipped with large rubber tires, allowing the RTG to move flexibly within the yard and meet the needs of different workstations.
The tire-based mobility system consists of multiple drive wheels, each equipped with an independent motor and braking system to ensure smooth movement and precise positioning within the yard. The lifting trolley is located beneath the main beam and is equipped with electric or hydraulic winches for lifting and moving containers. The trolley can move laterally along the rails, allowing for precise container positioning.
The RTG crane also features an advanced electrical control system, integrating PLC (Programmable Logic Controller), sensors, and various safety protection devices. This design makes the RTG an indispensable and efficient tool for container handling in modern ports and yards.
In large port yards, the RTG crane is used to efficiently handle and stack containers, improving space utilization and operational efficiency.
The RTG gantry crane is suitable for cargo terminals, quickly responding to different operational demands and ensuring the effectiveness and safety of the cargo loading and unloading process.
In modern logistics centers, the RTG gantry crane is used to precisely manage and stack large volumes of containers, optimizing storage layout and improving overall operational efficiency.
| Cap | t | 35 | |
| Span | mm | 17250 | |
| Lifing Height | 15200 | ||
| Work duty | A7 | ||
| Speed | Full load lifting | m/ min | 20 |
| Zeroload lifting | 50 | ||
| Trolley travelling | 7-70 | ||
| Crane travelling | 12-120 | ||
| Stacking layers | mm | 4 | |
| Container specification | 20'.40' | ||
| Main dimension | C1 | 1035 | |
| C2 | 1035 | ||
| H | 22420 | ||
| H1 | 15200 | ||
| B | 12000 | ||
| W | 7000 | ||
| K | 6400 | ||
| Max. Wheel Loading | kN | 290 | |
| Total power | kw | 310 | |
| Power Supply | Diesel Engine-Generator Sot | ||
1. Industry Position
Founded in 2006, Dafang Heavy Machinery covers an area of 1,580 acres and employs over 2,600 people. With an annual sales revenue of 3.566 billion RMB, the company focuses on two main business sectors: lifting machinery and steel structures. Major products include single and double girder bridge and gantry cranes, electric hoists, steel structure bridges, prefabricated buildings, and industrial plants. Dafang serves critical sectors such as military industry, aerospace, nuclear power, offshore engineering, metallurgy, and mining. Its products are exported to over 100 countries and regions, including the United States, Russia, and Southeast Asia.
Annually, Dafang manufactures 30,000 single-girder cranes, more than 12,000 double-girder and gantry cranes, and 30,000 electric hoists. Based on production scale, sales volume, and brand recognition, the company ranks among the top three in China’s crane industry.
2. Core Technologies
Dafang’s R&D team consists of over 260 members, including 104 with senior or intermediate engineering qualifications. The company invests 3.8% of its annual sales into technology development. It has obtained 12 international invention patents, 50 national invention patents, 415 utility model patents, and achieved 43 scientific and technological milestones. Dafang was the first in the industry to adopt anti-sway and automatic positioning technologies.
In 2016, Dafang became the first enterprise in Henan Province to implement smart crane applications and to introduce remote monitoring technology. The company also developed the multifunctional brewing crane, filling a domestic market gap. In 2021, Dafang was the first in the industry to be certified for unmanned intelligent cranes. In 2022, it undertook a project for a tower crane at a commercial satellite launch site.
3. Manufacturing Capability
Dafang Heavy Machinery is equipped with advanced in-house designed manufacturing equipment, including 1,500-ton press grooving machines, extrusion machines, and roller machines. The company has established leading domestic workshops, including an electrical assembly line, steel pre-processing line, paint finishing line, and China’s first practical single-girder lean production line. Precision machinery includes imported German NILES CNC gear grinding machines and Japanese MAZAK machining centers.
Dafang strictly follows refined manufacturing processes, adhering to the principle of “doing it right the first time, zero defects.” This commitment to quality is deeply ingrained in every employee, ensuring that every product delivered meets the highest standards.
4. Service Assurance
Dafang upholds a “comprehensive, high-quality” service standard, providing users with fast, attentive, and thorough one-stop services. With 24/7 online support, choosing Dafang means complete peace of mind. Just tell us what you need—we’ll take care of the rest.
Yes, the RTG crane’s independently driven tires enable it to adapt to different site layouts with excellent mobility, allowing it to quickly respond to various operational needs.
The RTG crane is equipped with an advanced PLC control system and automation technology, making operation simple and efficient. It can also be equipped with remote monitoring systems for easy management and operation.
The RTG crane is equipped with multiple safety features, including overload protection, emergency stop systems, and anti-slip designs, ensuring safe and reliable operation in various environments.
Yes, the RTG crane features modular design, making regular inspections and maintenance easy. Our after-sales service team also provides comprehensive technical support to ensure long-term stable operation of the equipment.
