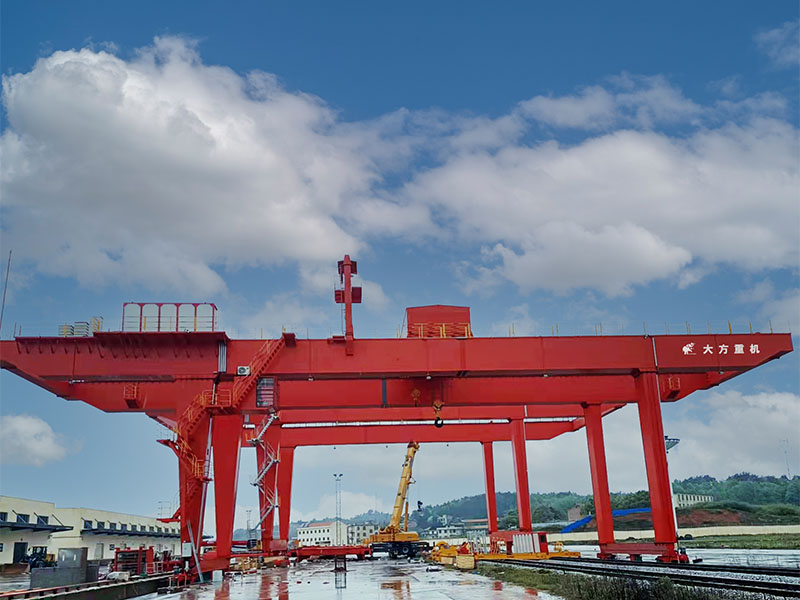

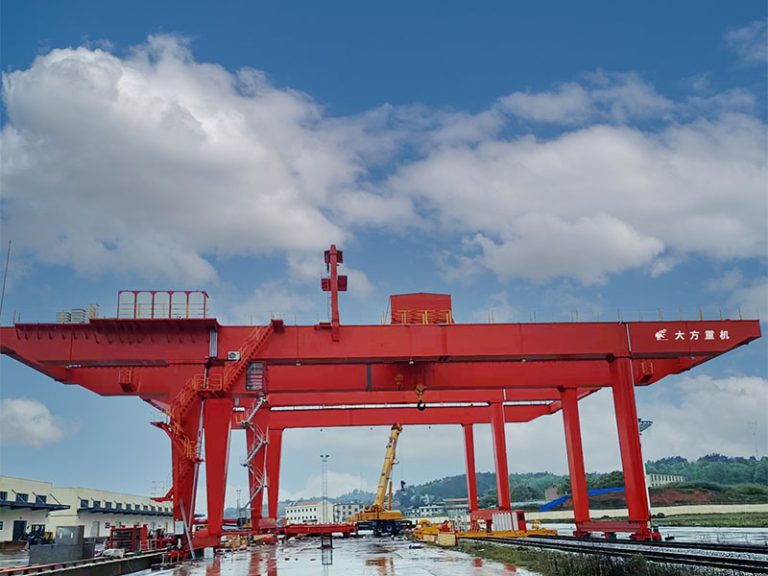

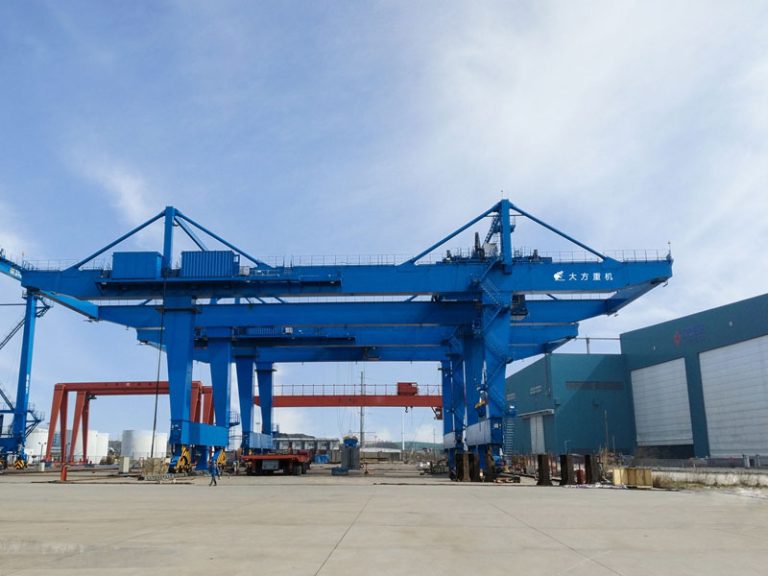

The rail-mounted container gantry crane is an efficient lifting equipment used in container yards. Its structure mainly consists of a gantry, trolley running mechanism, lifting mechanism, and trolley running mechanism. The gantry is made of a box-type beam structure, offering high strength and rigidity, capable of withstanding heavy loads and wind loads. The gantry running mechanism allows the crane to move longitudinally along the track. The lifting mechanism is responsible for the vertical lifting of containers, while the gantry running mechanism facilitates the horizontal movement of containers along the gantry beam. The rail-mounted container gantry crane is equipped with an advanced automation control system, enabling precise positioning and efficient operation.
The structural design of the rail-mounted container gantry crane also focuses on stability and safety. The gantry is supported by two parallel legs and an upper crossbeam. To meet different yard requirements, the span of the rail-mounted crane is adjustable, typically covering multiple container lanes. The lifting mechanism is driven by steel ropes or chains and is equipped with a double hook system. This crane can handle either one 40-foot or two 20-foot containers simultaneously, significantly improving operational efficiency. The electrical system uses frequency conversion control technology, ensuring smooth start-up, precise positioning, and reduced energy consumption. The rail-mounted container gantry crane can also be integrated with the yard management system for fully automated operations, further enhancing yard operational efficiency and intelligence.
Used for the efficient loading, unloading, storage, and transshipment of import and export containers, supporting high throughput operations. It improves port logistics efficiency and meets the rapid loading and unloading requirements of large vessels.
At rail freight stations, it enables fast container transfer between rail and road transport, optimizing multimodal transportation processes, improving cargo transshipment efficiency, and reducing transportation costs and time.
Supports the storage, scheduling, and distribution of large containers, meeting the operational needs of modern logistics and enhancing overall supply chain efficiency.
| Lifting Capacity | t | Under spreader 35 | |
| Span | m | 30 | |
| Lifting Height | m | 16 | |
| Work duty | A6(intermediate) | ||
| Load and unload goods | 20’,40’ Container | ||
| Speed | Hoisting | m/ min | 0-10 |
| Troley traveling | 3.4-34 | ||
| Crane traveling | 2.9-29 | ||
| Motor | Hoisting | Type/kW | YZP280M-8/2×55 |
| Troley traveling | YZP180L-8/2×11 | ||
| Crane traveling | YZP160L-6/4×11 | ||
| Weight | Trolley | t | 34 |
| Total Weight | 215 | ||
| Max, Wheel Looding | kN | 295 | |
| Steel Track Recommended | P43 | ||
| Power S upply | Based on your power supply | ||
1. Industry Position
Founded in 2006, Dafang Heavy Machinery covers an area of 1,580 acres and employs over 2,600 people. With an annual sales revenue of 3.566 billion RMB, the company focuses on two main business sectors: lifting machinery and steel structures. Major products include single and double girder bridge and gantry cranes, electric hoists, steel structure bridges, prefabricated buildings, and industrial plants. Dafang serves critical sectors such as military industry, aerospace, nuclear power, offshore engineering, metallurgy, and mining. Its products are exported to over 100 countries and regions, including the United States, Russia, and Southeast Asia.
Annually, Dafang manufactures 30,000 single-girder cranes, more than 12,000 double-girder and gantry cranes, and 30,000 electric hoists. Based on production scale, sales volume, and brand recognition, the company ranks among the top three in China’s crane industry.
2. Core Technologies
Dafang’s R&D team consists of over 260 members, including 104 with senior or intermediate engineering qualifications. The company invests 3.8% of its annual sales into technology development. It has obtained 12 international invention patents, 50 national invention patents, 415 utility model patents, and achieved 43 scientific and technological milestones. Dafang was the first in the industry to adopt anti-sway and automatic positioning technologies.
In 2016, Dafang became the first enterprise in Henan Province to implement smart crane applications and to introduce remote monitoring technology. The company also developed the multifunctional brewing crane, filling a domestic market gap. In 2021, Dafang was the first in the industry to be certified for unmanned intelligent cranes. In 2022, it undertook a project for a tower crane at a commercial satellite launch site.
3. Manufacturing Capability
Dafang Heavy Machinery is equipped with advanced in-house designed manufacturing equipment, including 1,500-ton press grooving machines, extrusion machines, and roller machines. The company has established leading domestic workshops, including an electrical assembly line, steel pre-processing line, paint finishing line, and China’s first practical single-girder lean production line. Precision machinery includes imported German NILES CNC gear grinding machines and Japanese MAZAK machining centers.
Dafang strictly follows refined manufacturing processes, adhering to the principle of “doing it right the first time, zero defects.” This commitment to quality is deeply ingrained in every employee, ensuring that every product delivered meets the highest standards.
4. Service Assurance
Dafang upholds a “comprehensive, high-quality” service standard, providing users with fast, attentive, and thorough one-stop services. With 24/7 online support, choosing Dafang means complete peace of mind. Just tell us what you need—we’ll take care of the rest.
This equipment is suitable for port container yards, railway freight stations, and large logistics parks, particularly for high-throughput operations requiring high efficiency.
The design of the gantry crane is maintenance-friendly, with regular inspections and maintenance being sufficient. We also offer on-site technical support and remote monitoring services to ensure long-term efficient operation.
Yes, the equipment can integrate with Yard Management Systems (YMS) and Terminal Operating Systems (TOS) for fully automated operations.
Our cranes are equipped with multiple safety protection devices, including limit switches, emergency braking systems, and overload protection to ensure safe operations.
