Description

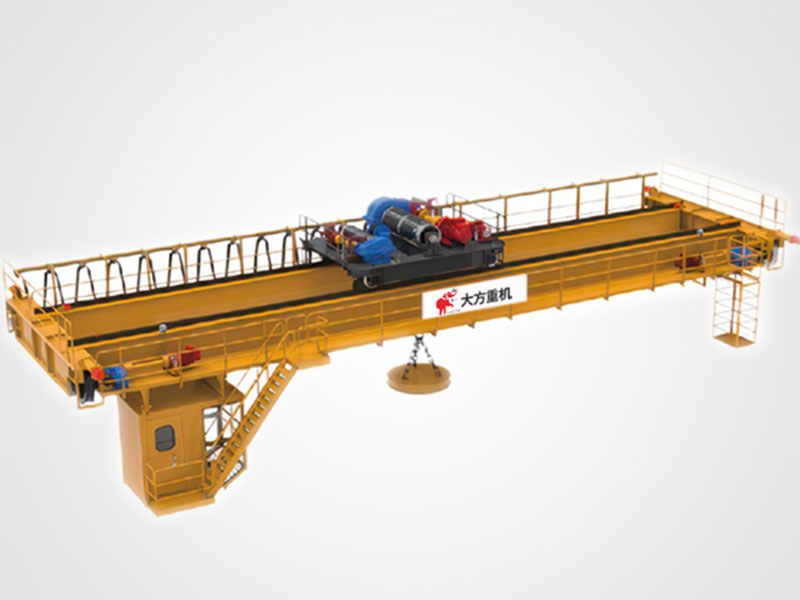

Electromagnetic Overhead Crane is an efficient material handling equipment equipped with detachable electromagnets, designed for lifting and transporting metal materials. Its hoisting mechanism consists of a motor, reducer, drum, and wire rope, which collectively control the lifting and lowering of the electromagnetic lifting device. The lifting capacity ranges from 5 to 50 tons. The crane operates under duty classes A5 and A6, with magnetic retention time lasting between 10 to 30 minutes.

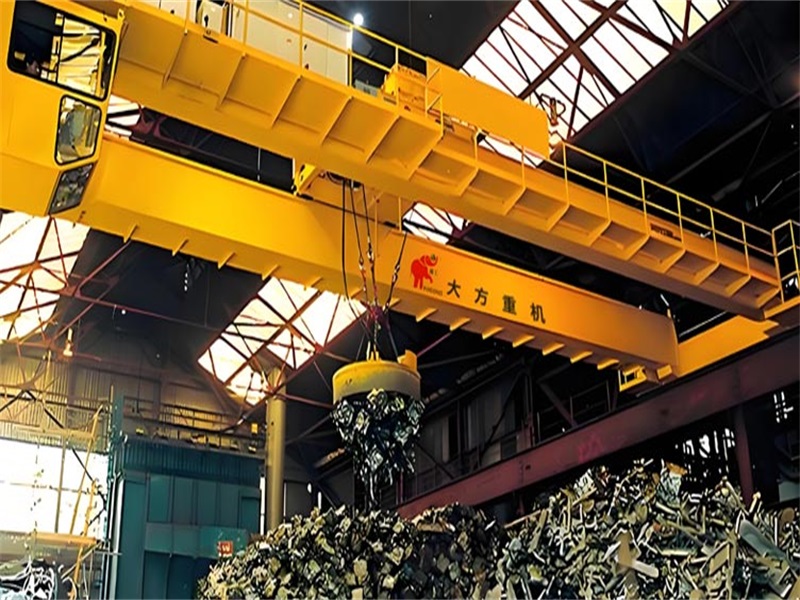

This system enables more precise, faster, and smoother lifting and movement of heavy loads. The electromagnetic lifting device utilizes electric current to attract and release ferrous materials, with adjustable magnetic force for optimal material handling efficiency.

The hoisting mechanism of the electromagnetic bridge crane adopts the classical parallel axis layout, the trolley running mechanism adopts the low speed shaft centralized drive structure, and the cart running adopts the structure of independent drive on both sides. It can be divided into hook type and hanging beam type according to the picking form; According to the layout of hanging beam, it can be divided into parallel main beam type and vertical main beam type; According to the rotation mode, it can be divided into upper rotation type and lower rotation type; According to the operation mode, it can be divided into ground operation, air operation and remote control operation.

Application

It is widely used in metalworking workshop, assembly workshop, maintenance workshop, steel structure workshop and various warehouses.

Feature & Advantages

• The steel structure is strong in rigidity, large in allowance and durable;
• The protection device is complete, safe and reliable;
• Simple control, convenient operation and maintenance;
• It is widely used, with high universality of parts and good maintainability.

Parameter

This is the specification table for a 32-50ton lifting capacity crane. We also offer customized cranes with different lifting capacities. Feel free to contact us for more information!

Liftingcapacity	Main hook	t	32								50
	Auxiliary hook		5								10
Span		m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Lifting height	Main hook		16								12
	Auxiliary hook		18								16
Work Duty			A4								A4
Explosion-proof grade			ExdlIBT4(ExdIICT4)								ExdlIBT4(ExdlICT4)
Speed	Main hoisting	m/min	4.1								3
	Auxiliary  hoisting		5								5
	Crane  traveling		17.5(13)								15.1(15.1)
	Trolley  traveling		19.1(12.4)								17(14.5)
Max.Wheel Loading		kN	138	146	152	166	173	185	194	203	160	167	176	189	197	209	220	229
Total motor power		kw	42.2(40.7)								50.9(49.1)			53.9(49.1)
Crane Rail Recommended			QU70 or square steel 90								QU80 or square steel 100
Power Supply			3-Phase A.C.50HZ380V
