Precast girder lifting gantry crane

  • Load capacity: 5-320ton
  • Crane span: 18m ~35m or customized
  • Lifting height: 10 to 13m or customized
  • Lifting Speed: 5-17 m/min
  • Working duty: A5
  • Power source: Based on your power supply
Share

Description

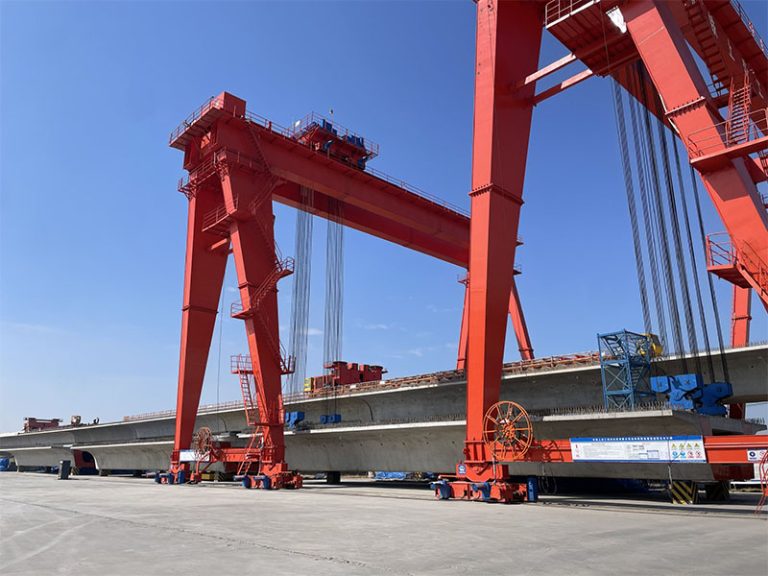

The precast beam lifting gantry crane is a tire-mounted gantry crane specifically designed for bridge construction, mainly used for lifting precast beams. This crane can lift precast beams from the casting platform to the storage platform and then transfer them to the beam transporter after curing. It supports both dual-machine synchronized lifting and single-machine dual-trolley dual-spreader operations, offering flexible and efficient handling. Widely used in highway, bridge, and power plant construction sites, it meets the needs of loading, unloading, and transporting precast beams.

The lifting crane adopts a truss or box girder structure, available in single-girder and double-girder configurations. Its hoisting mechanism typically uses winches, which provide stable operation and adapt well to construction site environments.

The beam lifting gantry crane is composed of modular components such as assembled main girders, legs, and bridge crane modules, connected via pins and high-strength bolts, enabling fully mechanized operations. In addition to lifting and transporting precast beams, it can also be used for the disassembly and assembly of launching gantries and for erecting dry-type bridges with low piers. It is easy to disassemble and transport, with flexible and efficient installation, making it more economical and practical than standard gantry cranes—especially suitable for road and bridge construction units that require frequent relocation.

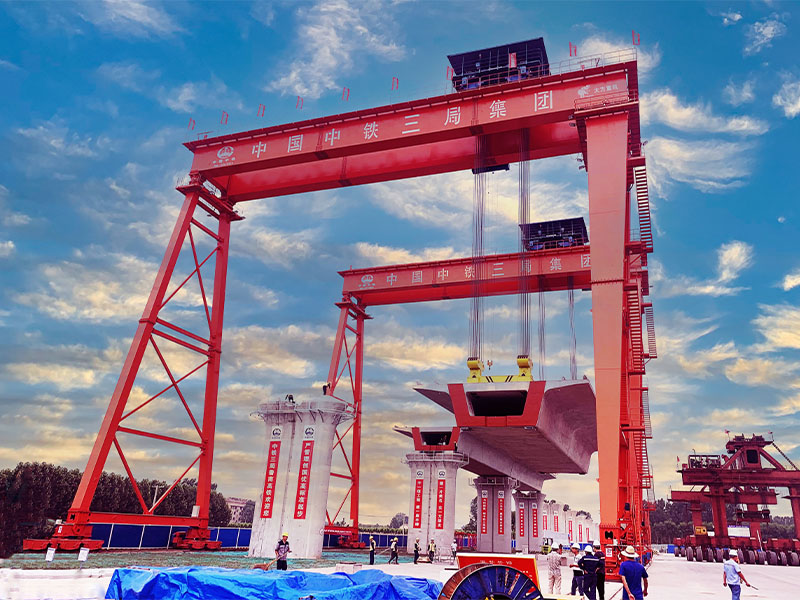

The precast beam lifting gantry crane employs a simply supported single-span erection method. The beam transporter delivers beams to the rear of the launching gantry, where the lifting trolley picks up the beam and fine-tunes its position in the air for precise alignment. This equipment features hydraulic tire-driven movement and longitudinal transfer within the span, offering flexibility and efficiency. It can erect double-line box girders of 32 meters, 24 meters, and 20 meters, and adapts to complex conditions such as small curvature radius (R5500m) and longitudinal slopes of 20°. With a rated lifting capacity of 900 tons, it meets various bridge construction requirements. Additionally, the gantry is equipped with an intelligent control system that enables full-process monitoring to enhance safety and construction accuracy.

Application

The Precast Beam Lifting Gantry Crane is ideal for use in highway construction, bridge beam yards, and bridge erection sites. It meets the demands of various precast beam lifting operations, ensuring smooth and efficient construction processes. Its flexibility and adaptability make it a great fit for projects in different terrains, from flat plains to mountainous regions.

Feature & Advantages

Multi-functional Lifting Methods

Supports a variety of lifting tools such as hooks, spreaders, and pin-type pulleys to accommodate different operational needs.

A-frame Design

Utilizes a leg support structure that combines rigidity and flexibility, enhancing the overall flexibility, load-bearing capacity, and stability of the gantry frame.

Steel Structure

Made of high-strength steel, the structure is robust with excellent load capacity, suitable for heavy-duty operations.

Trolley Travel Mechanism

Equipped with an efficient drive system for smooth movement and precise positioning to meet the lifting requirements of precast beams.

Crane Travel Mechanism

Supports linear travel, inclined travel, and in-place turning, flexibly adapting to complex construction environments.

Electrical System

Integrated with PLC intelligent control, wind speed meters, and safety monitoring to ensure safe and reliable operation.

Modular Design

Components are connected with pins and high-strength bolts, allowing easy assembly and disassembly, and flexible transport.

Efficient Operation

Supports dual-machine coordination or single-machine dual-trolley operation to improve construction efficiency.

Wide Application

Suitable for highway construction, bridge beam yards, and bridge erection sites, meeting various precast beam lifting requirements.

Parameter

ItemUnitResult
Lifting capacityton5-320
Lifting heightm10-13
Spanm18-35
Working environment temperture°C-20~40
Lifting Speedm/min5-17
Trolley Speedm/min34-44.6
Cab Speedm/min34.5-47.1
Working system A5
Power source three-Phase A C 50HZ 380V

Company Strength

1. Industry Position

Founded in 2006, Dafang Heavy Machinery covers an area of 1,580 acres and employs over 2,600 people. With an annual sales revenue of 3.566 billion RMB, the company focuses on two main business sectors: lifting machinery and steel structures. Major products include single and double girder bridge and gantry cranes, electric hoists, steel structure bridges, prefabricated buildings, and industrial plants. Dafang serves critical sectors such as military industry, aerospace, nuclear power, offshore engineering, metallurgy, and mining. Its products are exported to over 100 countries and regions, including the United States, Russia, and Southeast Asia.

Annually, Dafang manufactures 30,000 single-girder cranes, more than 12,000 double-girder and gantry cranes, and 30,000 electric hoists. Based on production scale, sales volume, and brand recognition, the company ranks among the top three in China’s crane industry.

2. Core Technologies

Dafang’s R&D team consists of over 260 members, including 104 with senior or intermediate engineering qualifications. The company invests 3.8% of its annual sales into technology development. It has obtained 12 international invention patents, 50 national invention patents, 415 utility model patents, and achieved 43 scientific and technological milestones. Dafang was the first in the industry to adopt anti-sway and automatic positioning technologies.

In 2016, Dafang became the first enterprise in Henan Province to implement smart crane applications and to introduce remote monitoring technology. The company also developed the multifunctional brewing crane, filling a domestic market gap. In 2021, Dafang was the first in the industry to be certified for unmanned intelligent cranes. In 2022, it undertook a project for a tower crane at a commercial satellite launch site.

3. Manufacturing Capability

Dafang Heavy Machinery is equipped with advanced in-house designed manufacturing equipment, including 1,500-ton press grooving machines, extrusion machines, and roller machines. The company has established leading domestic workshops, including an electrical assembly line, steel pre-processing line, paint finishing line, and China’s first practical single-girder lean production line. Precision machinery includes imported German NILES CNC gear grinding machines and Japanese MAZAK machining centers.

Dafang strictly follows refined manufacturing processes, adhering to the principle of “doing it right the first time, zero defects.” This commitment to quality is deeply ingrained in every employee, ensuring that every product delivered meets the highest standards.

4. Service Assurance

Dafang upholds a “comprehensive, high-quality” service standard, providing users with fast, attentive, and thorough one-stop services. With 24/7 online support, choosing Dafang means complete peace of mind. Just tell us what you need—we’ll take care of the rest.

FAQ

What makes your Precast Beam Lifting Gantry Crane different from others on the market?

Our Precast Beam Lifting Gantry Crane stands out due to its robust design, flexibility, and ease of transport. It supports multi-functional lifting methods, including hooks, spreaders, and pin-type pulleys, allowing for efficient handling of precast beams in various operational conditions. The crane features a high-strength steel structure for enhanced load capacity and stability, making it ideal for heavy-duty operations. Its modular design allows for easy assembly, disassembly, and transport, which is perfect for construction units that frequently move between sites.

How efficient is the crane in terms of operation and construction time?

The Precast Beam Lifting Gantry Crane is designed for efficiency. It supports dual-machine coordination or single-machine dual-trolley operation, significantly improving construction efficiency. The crane features advanced control systems, ensuring smooth operation, precise positioning, and reduced downtime. Its ability to work with different beam sizes and transport configurations allows it to adapt quickly to various construction needs, cutting down on project timelines and boosting productivity.

What safety features are integrated into the crane?

Safety is our top priority, and our Precast Beam Lifting Gantry Crane is equipped with multiple safety features, including overload protection, limit switches, and emergency stop buttons. Additionally, the crane integrates a smart control system, which monitors real-time operational data, providing early warnings for potential issues and ensuring that the crane operates safely and reliably. This reduces the risk of accidents and enhances the overall safety of your construction site.
