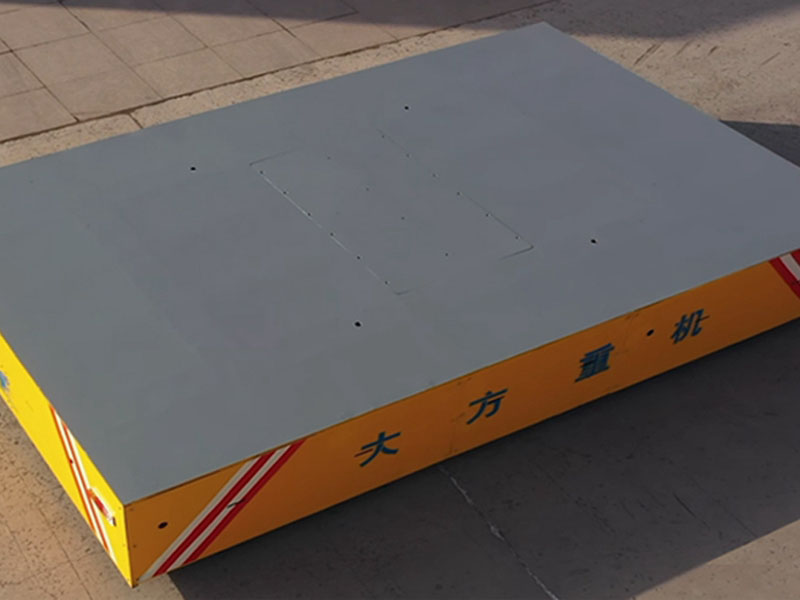

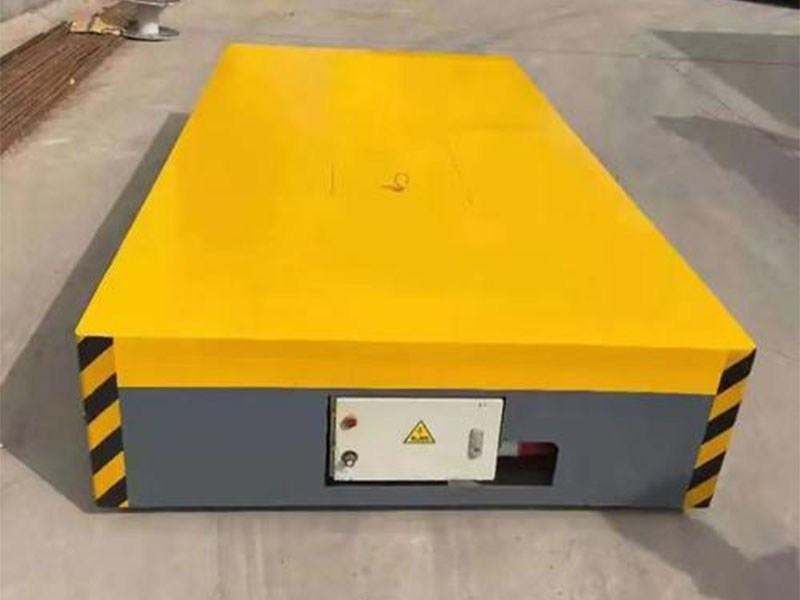

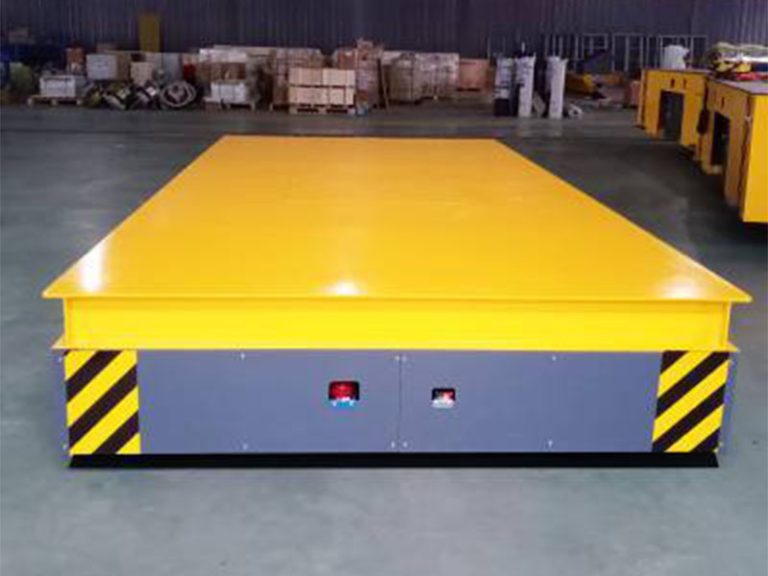

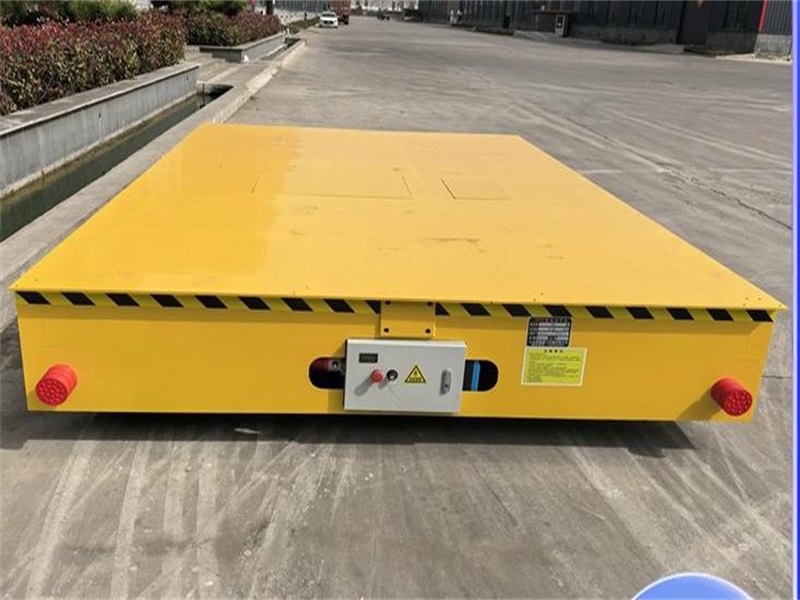

The trackless electric transfer cart is composed of a power source, transmission mechanism, steel structure load-bearing frame, steering system, traveling mechanism, control module, and fault diagnosis module. Typically, batteries, cables, or generators are selected as the power source for this series. The power is supplied to the traction motor through the electrical control module system, enabling the cart to start, stop, move forward, backward, and steer, among other functions. This series of carts can achieve 360° in-place rotation. Each cart is equipped with safety warning and detection devices that trigger alarms and automatic stopping upon encountering pedestrians or obstacles. An intelligent automatic charger is also provided. Additional devices such as positioning systems, clamping devices, and lifting platforms can be installed to meet various operational needs. This series can also be equipped with a PLC control system to realize fully automated control.
| Name | DPC series | ||||||
| Type | DPC-5 | DPC-10 | DPC-16 | DPC-20 | DPC-50 | DPC-75 | |
| Work duty | A5 | ||||||
| Rated loading capacity | t | 5 | 10 | 16 | 20 | 50 | 75 |
| Speed | m/ min | 15,20,30 | 15,20,30 | 15,20,30 | 15,20,30 | 15 | 20 |
| Motor | Type/ kw | ZDY₁21-4/2×0.8 | ZDY₁22-4/2×1.5 | YZRE112 M3-4/2×2.2 | YZR160L-8 | ||
| Main dimension | L | 4000 | 4000 | 5000 | 5000 | 6000 | 6000 |
| W | 2500 | 2500 | 3000 | 3000 | 3200 | 3200 | |
| B | 2200 | 2200 | 2500 | 2500 | 2800 | 2600 | |
| b | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| H | 800 | 800 | 850 | 850 | 850 | 1000 | |
| Total Weight | t | 2.8 | 3.1 | 4.8 | 5 | 8.8 | 12 |
| Max. wheel Load | kN | 22 | 36 | 62 | 72 | 146 | 260 |
| Steel Track Recommended | 24kg/m | 43kg/m | Qu70 | ||||
| Power Supply | Based on your power supply | ||||||
1. Industry Position
Founded in 2006, Dafang Heavy Machinery covers an area of 1,580 acres and employs over 2,600 people. With an annual sales revenue of 3.566 billion RMB, the company focuses on two main business sectors: lifting machinery and steel structures. Major products include single and double girder bridge and gantry cranes, electric hoists, steel structure bridges, prefabricated buildings, and industrial plants. Dafang serves critical sectors such as military industry, aerospace, nuclear power, offshore engineering, metallurgy, and mining. Its products are exported to over 100 countries and regions, including the United States, Russia, and Southeast Asia.
Annually, Dafang manufactures 30,000 single-girder cranes, more than 12,000 double-girder and gantry cranes, and 30,000 electric hoists. Based on production scale, sales volume, and brand recognition, the company ranks among the top three in China’s crane industry.
2. Core Technologies
Dafang’s R&D team consists of over 260 members, including 104 with senior or intermediate engineering qualifications. The company invests 3.8% of its annual sales into technology development. It has obtained 12 international invention patents, 50 national invention patents, 415 utility model patents, and achieved 43 scientific and technological milestones. Dafang was the first in the industry to adopt anti-sway and automatic positioning technologies.
In 2016, Dafang became the first enterprise in Henan Province to implement smart crane applications and to introduce remote monitoring technology. The company also developed the multifunctional brewing crane, filling a domestic market gap. In 2021, Dafang was the first in the industry to be certified for unmanned intelligent cranes. In 2022, it undertook a project for a tower crane at a commercial satellite launch site.
3. Manufacturing Capability
Dafang Heavy Machinery is equipped with advanced in-house designed manufacturing equipment, including 1,500-ton press grooving machines, extrusion machines, and roller machines. The company has established leading domestic workshops, including an electrical assembly line, steel pre-processing line, paint finishing line, and China’s first practical single-girder lean production line. Precision machinery includes imported German NILES CNC gear grinding machines and Japanese MAZAK machining centers.
Dafang strictly follows refined manufacturing processes, adhering to the principle of “doing it right the first time, zero defects.” This commitment to quality is deeply ingrained in every employee, ensuring that every product delivered meets the highest standards.
4. Service Assurance
Dafang upholds a “comprehensive, high-quality” service standard, providing users with fast, attentive, and thorough one-stop services. With 24/7 online support, choosing Dafang means complete peace of mind. Just tell us what you need—we’ll take care of the rest.
Yes, we offer tailored solutions ranging from 10T to 150T capacities.
Yes, we support custom loads from 1 ton up to 150 tons with flexible dimensions.
The cart features 360° obstacle sensors, emergency stop buttons, and warning systems for full protection.
It can be coordinated with overhead or gantry cranes for multi-point transfer and intelligent logistics integration.
