Description

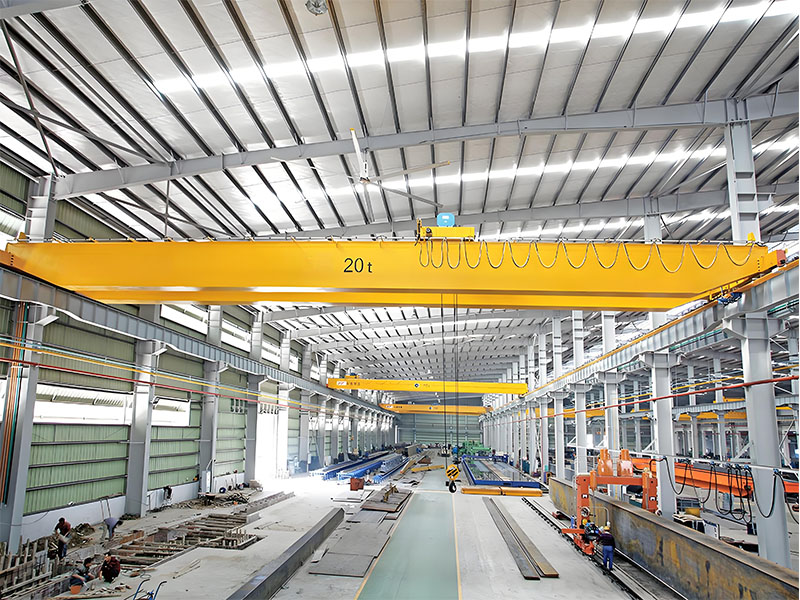

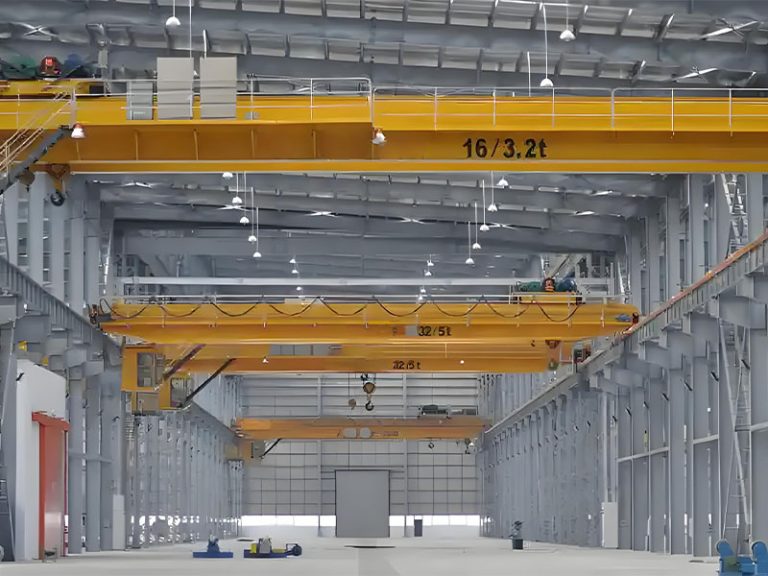

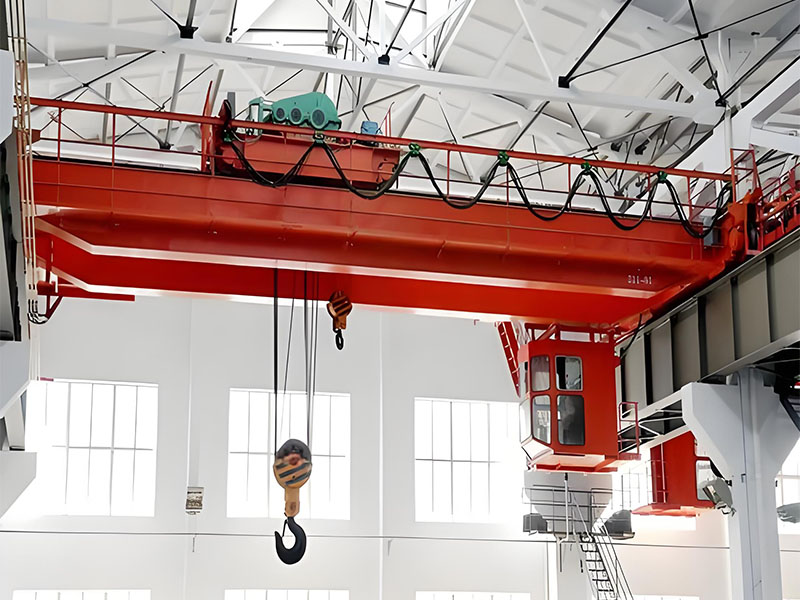

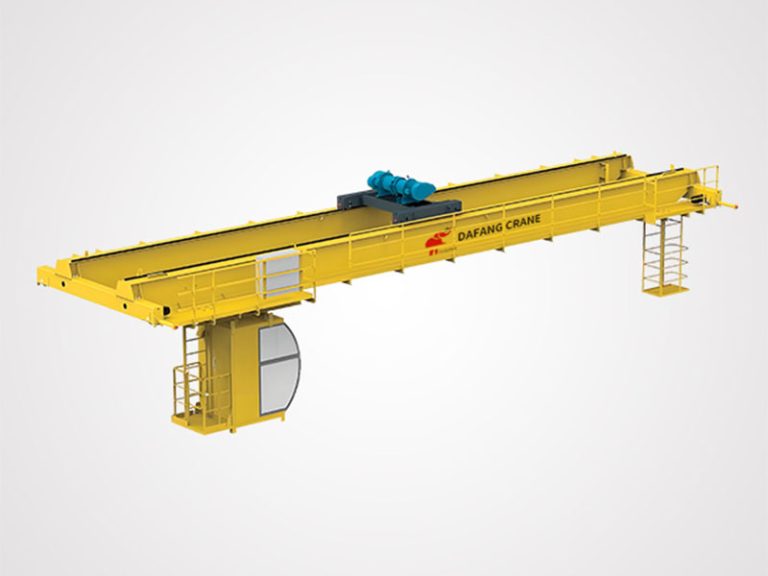

The NLH double-girder bridge crane is a type of heavy-duty lifting equipment widely used in industrial fields. It mainly consists of the bridge frame, trolley traveling mechanism, crane traveling mechanism, and electric hoist. The bridge frame is composed of two main girders and an end beam. The main girders typically adopt a box-type or truss structure, offering high strength and rigidity to withstand heavy loads.

The trolley traveling mechanism is mounted on the end beam, and the bridge crane is driven by a motor to move longitudinally along the rails. The hoist trolley travels on the main girders and drives the electric hoist to move transversely, enabling precise positioning.

As the lifting mechanism, the electric hoist trolley is responsible for vertically lifting goods and is equipped with dual-speed or multi-speed motors to meet various working conditions. This hoist bridge crane features a compact structure and stable operation. Users may also opt for a European-style hoist trolley as the lifting mechanism. The double-girder hoist bridge crane is suitable for material handling and lifting operations in workshops, warehouses, and similar settings.

Application

Feature & Advantages

1. Effective Performance: Advanced frequency conversion speed regulation technology is used to achieve smooth start and stop, improving work efficiency.
2. Compact Design: The structure is lightweight and compact, reducing self-weight and increasing effective load capacity, making it suitable for factory environments with limited space.
3. Flexible Operation: The operating mechanism is more precise, with smooth and flexible operation, adaptable to various complex working conditions.
4. High Durability: Key components are made from high-strength materials and undergo special treatments, providing excellent durability and corrosion resistance.

Parameter

Lifiting capacity		ton	5-32
Operational method			Ground controlling; Room controlling
Main hook lifting speed		m/min	3(0.3/3)
Aux. Hook lifting speed		m/min	8(0.8/8)
Cabin travelling speed		m/min	20
Crane travelling speed	Ground	m/min	20
	Room	m/min	30
Electric hoist		m/min	HC; CD1(MD1)
Lifting height		m	6, 9,12
Work system			A3-A4
Power supply			3-phase A C. 380V 50Hz
Steel track			P43
Span		m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Max. Wheel pressure	Ground	kN	96	103	109	115	120	125	131	135
	Cabin	kN	98	105	111	117	122	127	133	137
Crane weight	Ground	kg	9986	11876	14092	16490	18996	21500	24510	27800
	Cabin	kg	11901	13850	16170	17720	21532	24800	28100	30950
Total Power	Cabin	kW	35
	Cabin	kW	35						37.8

Company Strength

1. Industry Position

Founded in 2006, Dafang Heavy Machinery covers an area of 1,580 acres and employs over 2,600 people. With an annual sales revenue of 3.566 billion RMB, the company focuses on two main business sectors: lifting machinery and steel structures. Major products include single and double girder bridge and gantry cranes, electric hoists, steel structure bridges, prefabricated buildings, and industrial plants. Dafang serves critical sectors such as military industry, aerospace, nuclear power, offshore engineering, metallurgy, and mining. Its products are exported to over 100 countries and regions, including the United States, Russia, and Southeast Asia.

Annually, Dafang manufactures 30,000 single-girder cranes, more than 12,000 double-girder and gantry cranes, and 30,000 electric hoists. Based on production scale, sales volume, and brand recognition, the company ranks among the top three in China’s crane industry.

2. Core Technologies

Dafang’s R&D team consists of over 260 members, including 104 with senior or intermediate engineering qualifications. The company invests 3.8% of its annual sales into technology development. It has obtained 12 international invention patents, 50 national invention patents, 415 utility model patents, and achieved 43 scientific and technological milestones. Dafang was the first in the industry to adopt anti-sway and automatic positioning technologies.

In 2016, Dafang became the first enterprise in Henan Province to implement smart crane applications and to introduce remote monitoring technology. The company also developed the multifunctional brewing crane, filling a domestic market gap. In 2021, Dafang was the first in the industry to be certified for unmanned intelligent cranes. In 2022, it undertook a project for a tower crane at a commercial satellite launch site.

3. Manufacturing Capability

Dafang Heavy Machinery is equipped with advanced in-house designed manufacturing equipment, including 1,500-ton press grooving machines, extrusion machines, and roller machines. The company has established leading domestic workshops, including an electrical assembly line, steel pre-processing line, paint finishing line, and China’s first practical single-girder lean production line. Precision machinery includes imported German NILES CNC gear grinding machines and Japanese MAZAK machining centers.

Dafang strictly follows refined manufacturing processes, adhering to the principle of “doing it right the first time, zero defects.” This commitment to quality is deeply ingrained in every employee, ensuring that every product delivered meets the highest standards.

4. Service Assurance

Dafang upholds a “comprehensive, high-quality” service standard, providing users with fast, attentive, and thorough one-stop services. With 24/7 online support, choosing Dafang means complete peace of mind. Just tell us what you need—we’ll take care of the rest.

FAQ
