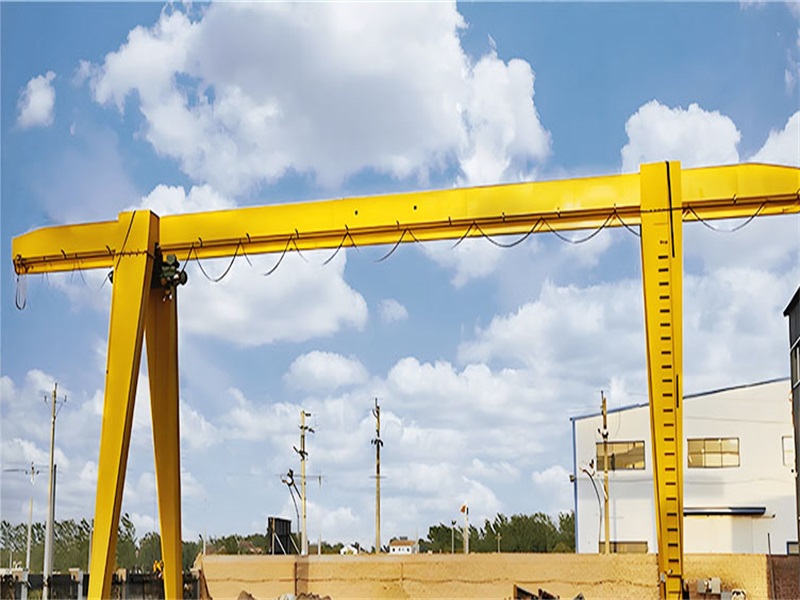

A single girder gantry crane is a general-purpose lifting device with a simple structure, widely used in various job sites. It is commonly employed in workshops, warehouses, and construction sites for material handling tasks. The single girder gantry crane uses an electric hoist as its lifting mechanism, allowing for efficient and stable operation.

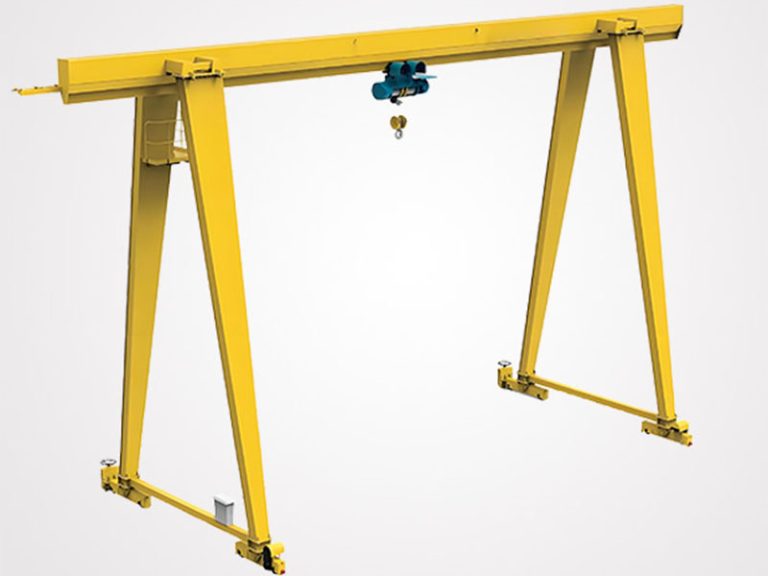

The main beam, located at the top of the crane, is a horizontal component and serves as the core load-bearing part of the gantry crane. Its primary function is to support the electric hoist and bear the weight of the lifted materials. Two support legs, attached vertically to both ends of the main beam, form the "gantry" frame. These legs provide stable support, enabling the gantry crane to move on the ground or along a track.
The traveling mechanism, located at the bottom of the support legs, consists of wheels or a drive system. It allows the gantry crane to move horizontally on the ground or on dedicated tracks, expanding the working area. Safety features include components such as limit switches, emergency stop buttons, and overload protectors.
Used for material handling, equipment installation, and maintenance on production lines.
Mainly for loading, unloading, stacking, and transferring goods in warehouses.
Lifting and moving light construction materials and equipment to improve work efficiency.
Suitable for loading, unloading, and short-distance transportation of small goods.
Used for equipment maintenance, parts replacement, and other related tasks.
| Model | MH Single bream gantry crane | Lifting Speed(m/min) | 8(0.8/8) |
| Electric Hoist | CD1/MD1 | Cross travelling Speed | 20/30 m/min |
| Working Class | A4 | Long travelling Speed | 20/30 m/min |
| Overload Protection | Included | Span（m） | 7.5-30 meter |
| Warranty | 3 years | ||
| Weight (KG) | 10000 kg | ||
| Power Source | 50Hz 380V | ||
| Operational Method | Ground controlling；Remote controlling | ||
| Lifting Capacity(t） | 1-32 Ton | ||
1. Industry Position
Founded in 2006, Dafang Heavy Machinery covers an area of 1,580 acres and employs over 2,600 people. With an annual sales revenue of 3.566 billion RMB, the company focuses on two main business sectors: lifting machinery and steel structures. Major products include single and double girder bridge and gantry cranes, electric hoists, steel structure bridges, prefabricated buildings, and industrial plants. Dafang serves critical sectors such as military industry, aerospace, nuclear power, offshore engineering, metallurgy, and mining. Its products are exported to over 100 countries and regions, including the United States, Russia, and Southeast Asia.
Annually, Dafang manufactures 30,000 single-girder cranes, more than 12,000 double-girder and gantry cranes, and 30,000 electric hoists. Based on production scale, sales volume, and brand recognition, the company ranks among the top three in China’s crane industry.
2. Core Technologies
Dafang’s R&D team consists of over 260 members, including 104 with senior or intermediate engineering qualifications. The company invests 3.8% of its annual sales into technology development. It has obtained 12 international invention patents, 50 national invention patents, 415 utility model patents, and achieved 43 scientific and technological milestones. Dafang was the first in the industry to adopt anti-sway and automatic positioning technologies.
In 2016, Dafang became the first enterprise in Henan Province to implement smart crane applications and to introduce remote monitoring technology. The company also developed the multifunctional brewing crane, filling a domestic market gap. In 2021, Dafang was the first in the industry to be certified for unmanned intelligent cranes. In 2022, it undertook a project for a tower crane at a commercial satellite launch site.
3. Manufacturing Capability
Dafang Heavy Machinery is equipped with advanced in-house designed manufacturing equipment, including 1,500-ton press grooving machines, extrusion machines, and roller machines. The company has established leading domestic workshops, including an electrical assembly line, steel pre-processing line, paint finishing line, and China’s first practical single-girder lean production line. Precision machinery includes imported German NILES CNC gear grinding machines and Japanese MAZAK machining centers.
Dafang strictly follows refined manufacturing processes, adhering to the principle of “doing it right the first time, zero defects.” This commitment to quality is deeply ingrained in every employee, ensuring that every product delivered meets the highest standards.
4. Service Assurance
Dafang upholds a “comprehensive, high-quality” service standard, providing users with fast, attentive, and thorough one-stop services. With 24/7 online support, choosing Dafang means complete peace of mind. Just tell us what you need—we’ll take care of the rest.
This crane has a simple structure and reliable performance, widely used in workshops, warehouses, and construction sites for medium and small material handling tasks.
The main girder is welded from high-strength steel plates with excellent rigidity and load capacity. The two supporting legs form a portal frame, ensuring stable and reliable operation.
An electric hoist is mounted under the main beam, enabling stable and precise lifting and lateral movement.
Yes, we offer customization services, adjusting span, height, lifting capacity, and other parameters to suit specific working conditions.
Yes, it is equipped with limit switches, emergency stop buttons, overload protectors, and multiple safety systems to ensure safe operation.
