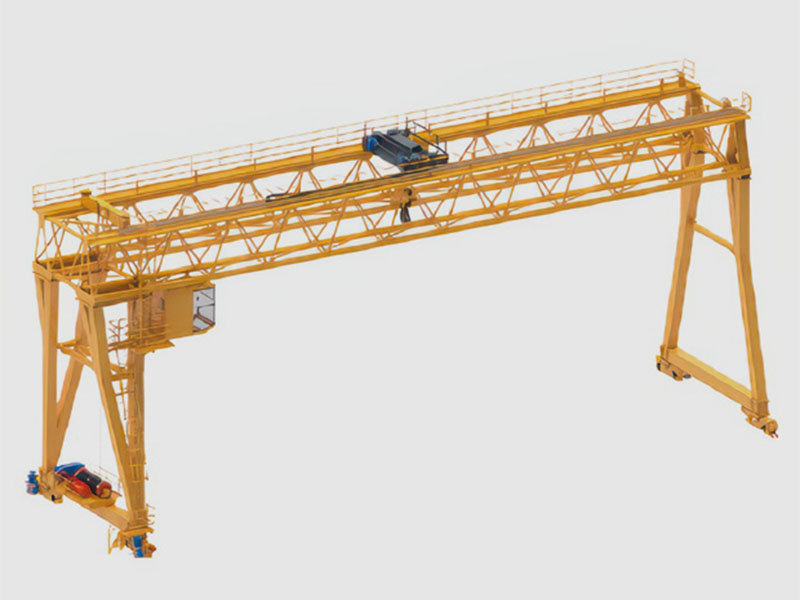

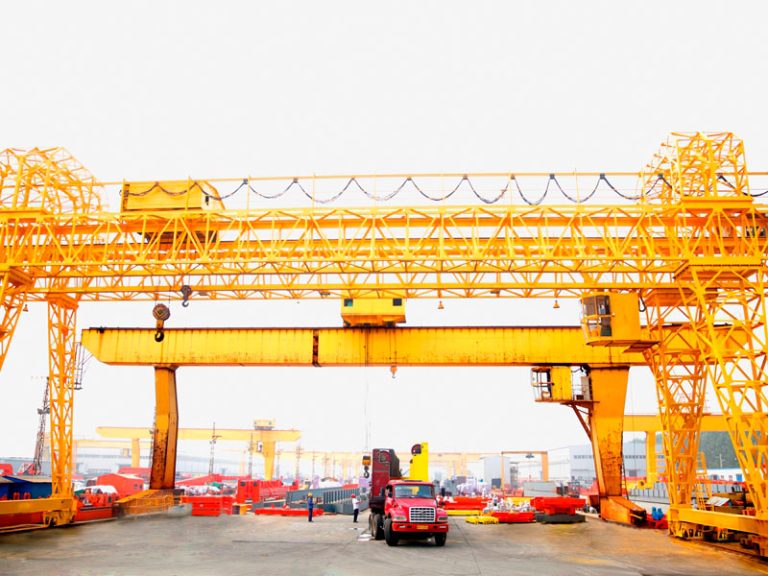

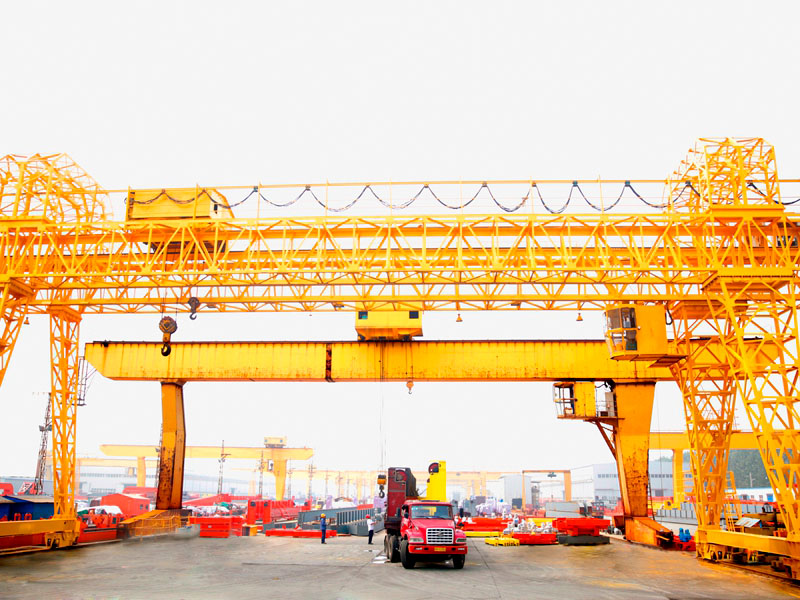

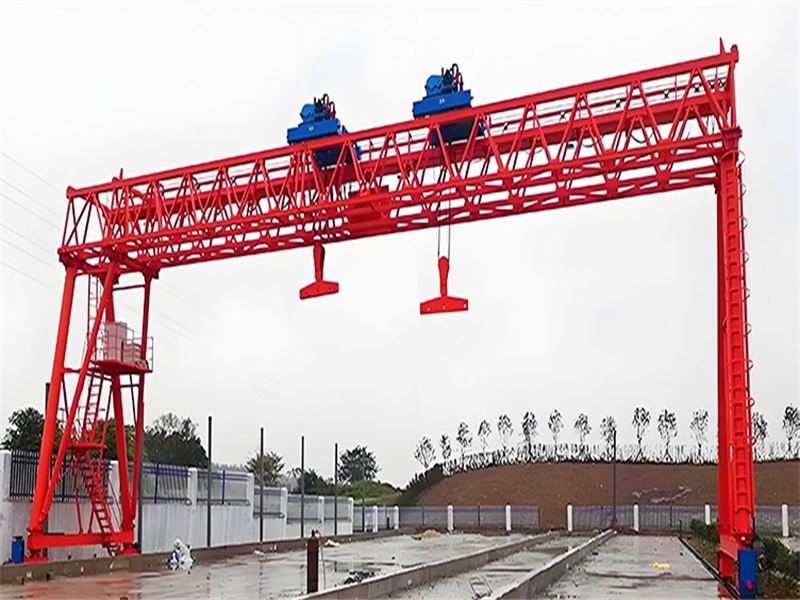

The MG Truss Gantry Crane is a heavy-duty lifting device primarily used in outdoor environments. Its open truss structure allows for easy inspection and maintenance of all components.
The frame of the MG truss gantry crane is composed of triangular configurations, forming a robust structure. It is capable of bearing heavy loads and adapting to various complex working conditions.
MG truss gantry cranes are typically portable. They can be moved within a facility or between work sites, making them ideal for temporary installations or locations where a fixed gantry crane cannot be installed. This type of truss gantry crane is widely used and offers numerous advantages.
Double-girder truss gantry cranes play a vital role in bridge construction, transporting building materials, and installing heavy equipment.
Widely used in industries such as automobile manufacturing, shipbuilding, and steel production for loading, unloading, and handling goods on production lines.
In power plants and nuclear facilities, they assist with equipment installation and maintenance.
Ideal for material handling in large-scale construction projects, especially where wide coverage and high load capacity are required.
| LiftingCapacity | Main Hook | ton | 200(100+100) | 250(125+125) |
| Span | meter | 40 | ||
| Lifting Height | Main Hook | 12 | ||
| Working Grade | M3 | |||
| Speed | Main Hook | m/min | 0.57 | 0.5 |
| Auxiliary Hook | — | |||
| Crab Travelling | 0-7.5 | |||
| Trolley Traveling | 0-9 | |||
| Max.Wheel Loading | kN | 210 | 232 | |
| Power | kw | 48 | 60 | |
| Crane Rail Recommended | QU80 | QU80 | ||
| Power Supply | 3-Phase A.C.50HZ 380V | |||
1. Industry Position
Founded in 2006, Dafang Heavy Machinery covers an area of 1,580 acres and employs over 2,600 people. With an annual sales revenue of 3.566 billion RMB, the company focuses on two main business sectors: lifting machinery and steel structures. Major products include single and double girder bridge and gantry cranes, electric hoists, steel structure bridges, prefabricated buildings, and industrial plants. Dafang serves critical sectors such as military industry, aerospace, nuclear power, offshore engineering, metallurgy, and mining. Its products are exported to over 100 countries and regions, including the United States, Russia, and Southeast Asia.
Annually, Dafang manufactures 30,000 single-girder cranes, more than 12,000 double-girder and gantry cranes, and 30,000 electric hoists. Based on production scale, sales volume, and brand recognition, the company ranks among the top three in China’s crane industry.
2. Core Technologies
Dafang’s R&D team consists of over 260 members, including 104 with senior or intermediate engineering qualifications. The company invests 3.8% of its annual sales into technology development. It has obtained 12 international invention patents, 50 national invention patents, 415 utility model patents, and achieved 43 scientific and technological milestones. Dafang was the first in the industry to adopt anti-sway and automatic positioning technologies.
In 2016, Dafang became the first enterprise in Henan Province to implement smart crane applications and to introduce remote monitoring technology. The company also developed the multifunctional brewing crane, filling a domestic market gap. In 2021, Dafang was the first in the industry to be certified for unmanned intelligent cranes. In 2022, it undertook a project for a tower crane at a commercial satellite launch site.
3. Manufacturing Capability
Dafang Heavy Machinery is equipped with advanced in-house designed manufacturing equipment, including 1,500-ton press grooving machines, extrusion machines, and roller machines. The company has established leading domestic workshops, including an electrical assembly line, steel pre-processing line, paint finishing line, and China’s first practical single-girder lean production line. Precision machinery includes imported German NILES CNC gear grinding machines and Japanese MAZAK machining centers.
Dafang strictly follows refined manufacturing processes, adhering to the principle of “doing it right the first time, zero defects.” This commitment to quality is deeply ingrained in every employee, ensuring that every product delivered meets the highest standards.
4. Service Assurance
Dafang upholds a “comprehensive, high-quality” service standard, providing users with fast, attentive, and thorough one-stop services. With 24/7 online support, choosing Dafang means complete peace of mind. Just tell us what you need—we’ll take care of the rest.
MG truss gantry cranes are primarily used outdoors, such as on bridge construction sites, railway freight yards, and power installation areas. Their open structure allows for easy inspection and maintenance, making them suitable for complex working environments.
The truss structure is lighter, has stronger wind resistance, and is easier to transport and install—especially suitable for wide spans or complex terrain. Its open design also facilitates daily inspection and maintenance.
Yes. We offer non-standard customization based on the customer’s operating environment and requirements. Parameters such as span, lifting height, and duty class can be tailored to meet specific conditions.
The crane is equipped with multiple safety features, including windproof devices, anti-slip systems, and limit switches, ensuring stable operation under various weather conditions and workloads.
We offer on-site installation guidance, remote technical support, and training services. All equipment comes with a warranty period, and we provide lifelong spare parts and technical support.
