Description

The Double-Girder Semi-Gantry Crane (BMG) is a robust and high-capacity lifting equipment, ideal for medium to heavy-duty material handling tasks. Its main structure consists of two main beams, one side with partial support legs, and an electric trolley. The two main beams offer excellent rigidity and load-bearing capacity, and their surfaces are treated with anti-corrosion coatings to extend their service life. The support legs are usually arranged on one side, while the other side is supported by the existing structure of the factory. This design saves space and reduces costs.

The electric trolley is positioned between the two main beams, and the lifting and horizontal movement of heavy loads are powered by electricity, ensuring smooth and precise operation. The running mechanism is located at the bottom of the support legs and is equipped with rubber tires or metal wheels with braking functions, ensuring smooth movement and precise positioning on the tracks. The entire system is equipped with an advanced electrical control system, including multiple safety protection devices.

The Double-Girder Semi-Gantry Crane offers high design flexibility, with the span and height adjustable based on actual needs. It is widely used in industries such as mechanical manufacturing, steel processing, and automobile manufacturing, especially in applications requiring heavy lifting capacity and high work efficiency. Whether handling heavy equipment or performing precise hoisting operations, the Double-Girder Semi-Gantry Crane provides effective and stable solutions.

Application

Parameter

Lifting capacity					10
Span				m	10	12	16	20
Lifting Height				m	6
TravelingMechanism	Travelling Speed		Ground	m/min	20
			Cabin		20		30
	Motor		Ground		17.6KW		19KW
			Cabin		17.6KW		19KW
Electric Hoist	Type				CD1		MD₁
	Lifting Speed			m/min	7		7/0.7
	Travelling Speed			m/min	20
	Motor		Lifting		ZD151-4/13		ZDS11.5/13
			Traveling		YSE80₂-4/0.8×2
Working Duty					A3
Crane Rail Recommended					P38
Power Supply					3-Phase A.C.50HZ 380V
Max.Wheel Loading		kN			78	85	94	103

Feature & Advantages

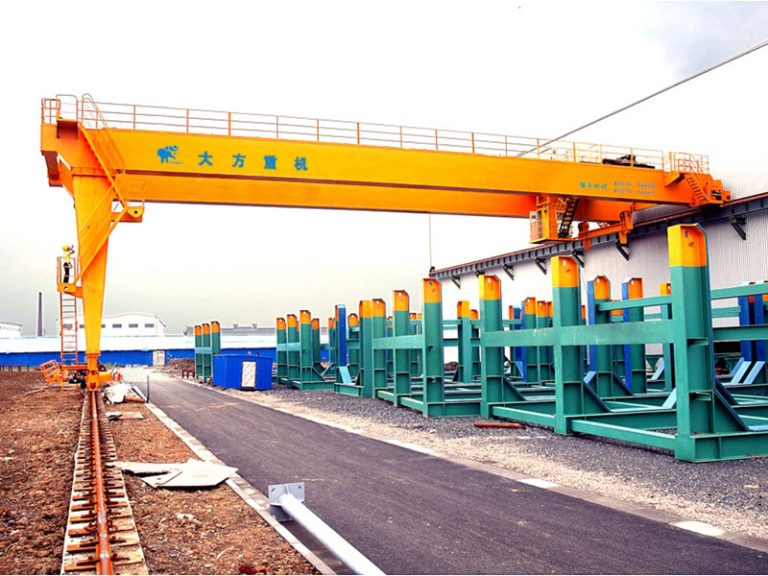

• Compact and Cost-Effective: The double girder semi-gantry crane is installed at one end on the workshop beam, while the other end operates on a ground track. This design saves space and reduces the overall cost of the equipment. At the same time, its compact structure allows for optimal utilization of available space.
• Strong Load Capacity and High Stability: The double girder structure provides greater load capacity, allowing the crane to handle heavier goods. Additionally, its overall stability is excellent, making it suitable for complex working environments.
• Flexible Operation and High Efficiency: The double girder semi-gantry crane supports multiple operation modes, including ground operation, remote control, and cabin operation, to meet the needs of different scenarios. Its smooth operation, fast lifting, and running speeds can significantly improve production efficiency.
