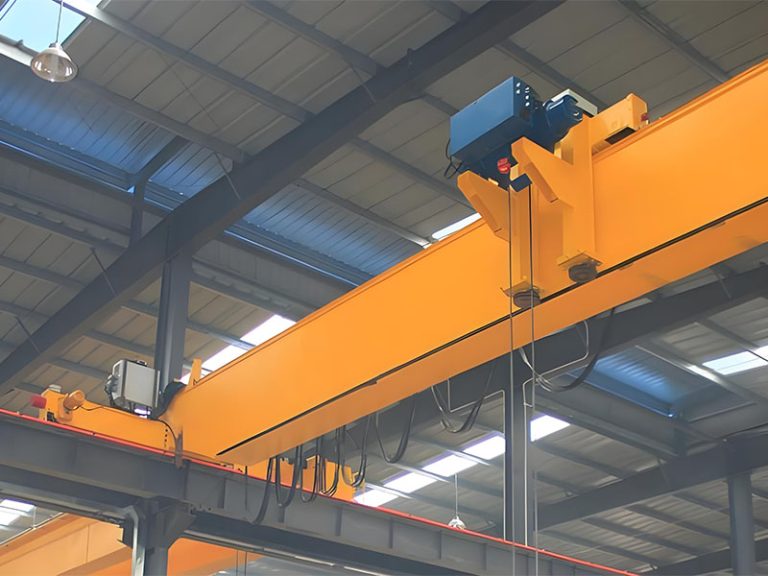

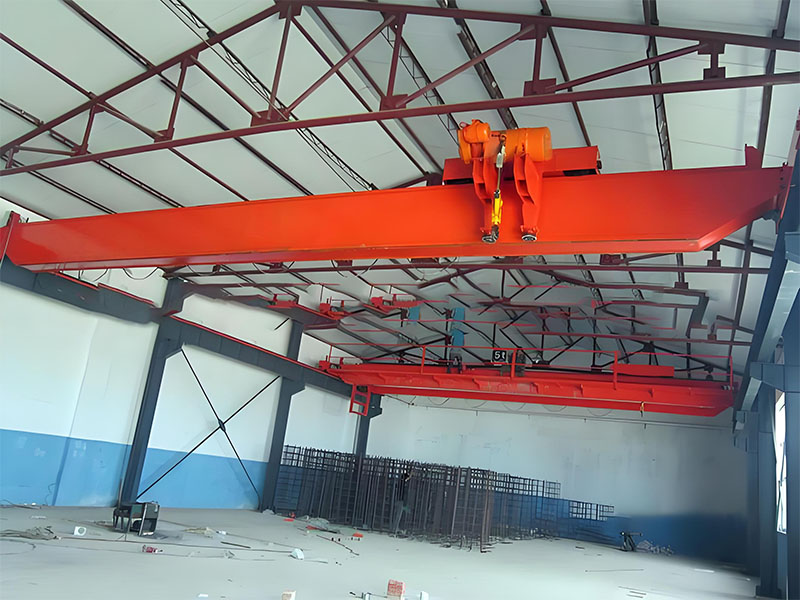

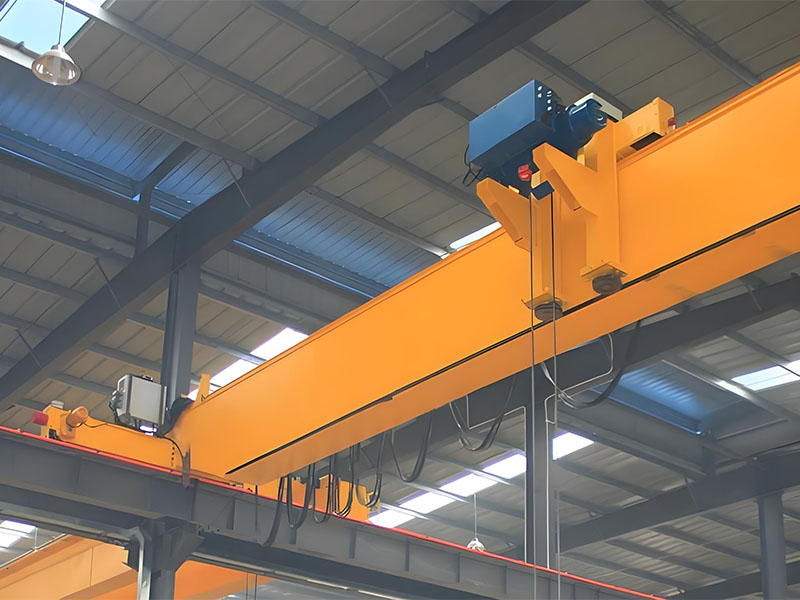

The LP cantilever single girder crane operates by the coordinated action of the trolley running mechanism and the hoist running mechanism, allowing the hook to move in three-dimensional space, thus achieving the lifting and transportation of goods. Specifically, the trolley running mechanism drives the crane to move longitudinally along the factory track, while the hoist running mechanism drives the lifting mechanism to move transversely along the main beam track. The lifting mechanism, powered by an electric motor, drives the drum to raise and lower the steel wire rope or chain, achieving the vertical movement of the hook to lift and transport the goods to the designated position.

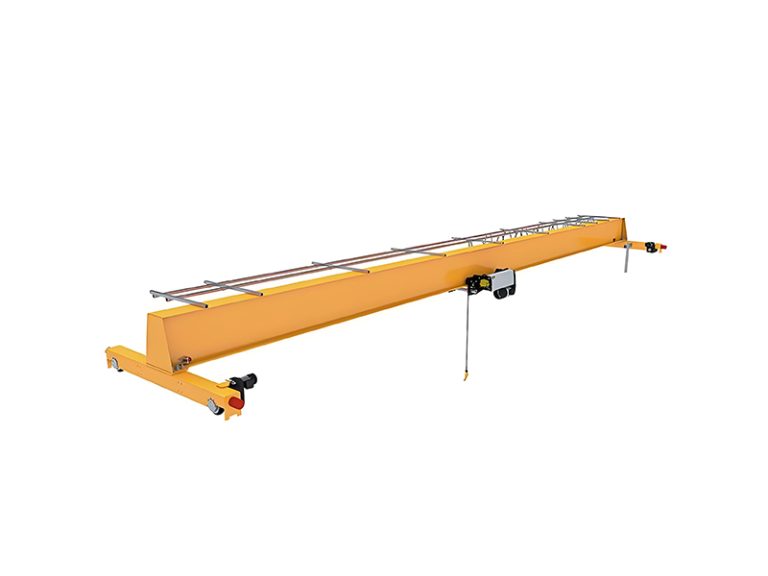

Main Beam Structure: The cantilever single girder design is adopted, with the main beam typically composed of I-beams or other types of steel and steel plates. This structural form provides good stability and load-bearing capacity during operation, while also reducing the weight of the crane, which lowers the requirements on the factory structure.

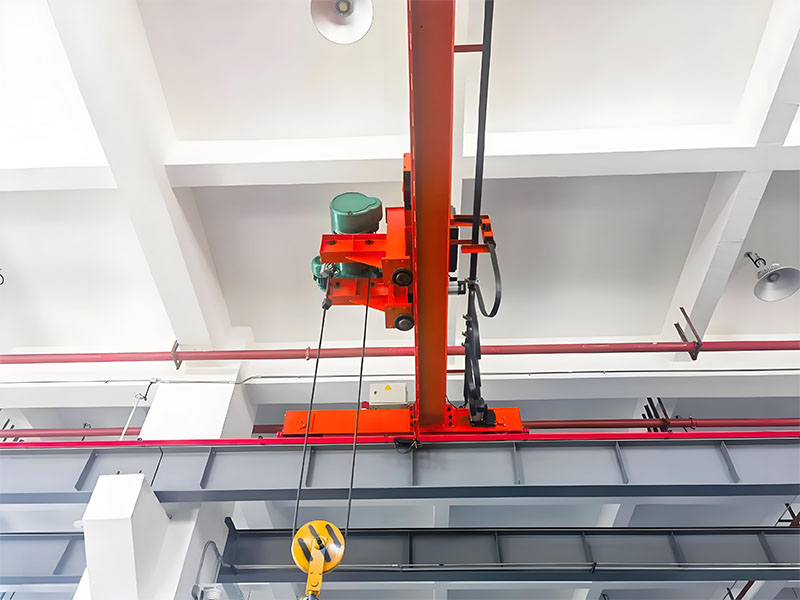

Trolley Mechanism: This includes an electric hoist or other lifting devices, installed at the cantilever position of the main beam. The trolley moves along the track of the main beam, achieving the horizontal movement of goods. The lifting mechanism drives the hook through steel wire ropes or chains, completing the lifting and lowering actions of the goods.
Bridge Running Mechanism: Consisting of a motor, reducer, wheels, and other components, this is installed at both ends of the crane. The bridge running mechanism drives the crane to move longitudinally along the factory track, allowing the crane to cover the entire working area.
Electrical Control System: Used to control the operation of each mechanism of the crane, including starting, stopping, and speed adjustment of the motors. Advanced PLC control systems are typically used, which are characterized by ease of operation, high control accuracy, and good safety performance.
Used for lifting and transporting various mechanical equipment and components, such as engine blocks, large gears, etc. It can also cooperate with production lines for precise assembly tasks.
Used for lifting and transporting high-temperature metal billets, steel, and other heavy items, but generally not used for lifting molten metals or red-hot metals.
Capable of lifting, stacking, and transporting various goods, facilitating storage and turnover of goods. It is especially suitable for use in low-ceiling warehouses with limited space.
Suitable for lifting and transporting large electronic equipment, components, etc. Due to its high positioning accuracy, it can meet the high-precision requirements for equipment handling in electronics production workshops.
In assembly workshops such as automobile manufacturing or furniture manufacturing, it can lift and transport components to designated positions, making it easier for workers to assemble and improving assembly efficiency and quality.
The cantilever single girder design is used, with the main beam typically composed of I-beams or other structural steel combined with steel plates. This structure provides good stability and load-bearing capacity during operation while reducing the weight of the crane, which in turn lowers the requirements for the factory building's structure.
This includes an electric hoist or other lifting devices, installed at the cantilever position of the main beam. The trolley moves along the track of the main beam to achieve the horizontal movement of the load. The lifting mechanism drives the hook through steel wire ropes or chains, completing the lifting and lowering movements of the load.
Consisting of a motor, reducer, wheels, and other components, this is installed at both ends of the crane. The bridge running mechanism drives the crane to move longitudinally along the factory track, enabling the crane to cover the entire working area.
This system controls the operation of each mechanism of the crane, including starting, stopping, and speed adjustment of the motors. It typically uses an advanced PLC control system, characterized by ease of operation, high control precision, and excellent safety performance.
This is the specification table for a 10-ton lifting capacity crane. We also offer customized cranes with different lifting capacities. Feel free to contact us for more information!
(t) Capacity | (m) S span | G(t) Total weight ground control | Rmin (kN) max. wheel load | Rmin (kN) min. wheel load | (mm) H1 wheel tread approach to top | H2(mm) wheel tread approach to center of hook | W(mm) End carriage wheel base | B(mm) Total length of end carriage | E(mm) Eccentric distance between main girder and wheel shaft | L1(mm) Hook approach to limit position on the left | L2(mm) Hook approach to limit position on the right |
| 10 | 7.5 | 4.047 | 49.78 | 7.33 | 1075 | -435 | 2500 | 3000 | 820 | 1840 | 1840 |
| 8 | 4.141 | 50.9 | 7.51 | ||||||||
| 8.5 | 4.236 | 51.92 | 7.69 | ||||||||
| 9 | 4.349 | 52.89 | 7.92 | ||||||||
| 9.5 | 4.441 | 53.74 | 8.11 | ||||||||
| 10 | 4.535 | 54.54 | 8.3 | ||||||||
| 10.5 | 4.649 | 55.32 | 8.55 | ||||||||
| 11 | 4.737 | 56.01 | 8.74 | ||||||||
| 11.5 | 5.378 | 57.88 | 10.12 | 1195 | -315 | 860 | |||||
| 12 | 5.491 | 58.55 | 10.38 | ||||||||
| 12.5 | 5.636 | 59.25 | 10.71 | ||||||||
| 13 | 5.751 | 59.86 | 10.96 | ||||||||
| 13.5 | 5.867 | 60.45 | 11.22 | ||||||||
| 14 | 5.98 | 61 | 11.48 | ||||||||
| 14.5 | 6.542 | 62.64 | 12.79 | 1305 | -205 | 3000 | 3500 | 1135 | |||
| 15 | 6.667 | 63.19 | 13.07 | ||||||||
| 15.5 | 6.79 | 63.71 | 13.35 | ||||||||
| 16 | 6.914 | 64.23 | 13.64 | ||||||||
| 16.5 | 7.077 | 64.83 | 14.03 | ||||||||
| 17 | 7.2 | 65.31 | 14.31 | ||||||||
| 17.5 | 7.741 | 66.83 | 15.59 | 1385 | -125 | 3500 | 4000 | 1400 | |||
| 18 | 7.871 | 67.31 | 15.89 | ||||||||
| 18.5 | 8.006 | 67.79 | 16.21 | ||||||||
| 19 | 8.178 | 68.37 | 16.62 | ||||||||
| 19.5 | 8.312 | 68.83 | 16.93 | ||||||||
| 20 | 8.98 | 70.61 | 18.53 | 1475 | -35 | 1420 | |||||
| 20.5 | 9.121 | 71.09 | 18.86 | ||||||||
| 21 | 9.321 | 71.7 | 19.34 | ||||||||
| 21.5 | 9.46 | 72.15 | 19.67 | ||||||||
| 22 | 9.602 | 72.6 | 20 | ||||||||
| 22.5 | 9.804 | 73.2 | 20.49 |
1. Industry Position
Founded in 2006, Dafang Heavy Machinery covers an area of 1,580 acres and employs over 2,600 people. With an annual sales revenue of 3.566 billion RMB, the company focuses on two main business sectors: lifting machinery and steel structures. Major products include single and double girder bridge and gantry cranes, electric hoists, steel structure bridges, prefabricated buildings, and industrial plants. Dafang serves critical sectors such as military industry, aerospace, nuclear power, offshore engineering, metallurgy, and mining. Its products are exported to over 100 countries and regions, including the United States, Russia, and Southeast Asia.
Annually, Dafang manufactures 30,000 single-girder cranes, more than 12,000 double-girder and gantry cranes, and 30,000 electric hoists. Based on production scale, sales volume, and brand recognition, the company ranks among the top three in China’s crane industry.
2. Core Technologies
Dafang’s R&D team consists of over 260 members, including 104 with senior or intermediate engineering qualifications. The company invests 3.8% of its annual sales into technology development. It has obtained 12 international invention patents, 50 national invention patents, 415 utility model patents, and achieved 43 scientific and technological milestones. Dafang was the first in the industry to adopt anti-sway and automatic positioning technologies.
In 2016, Dafang became the first enterprise in Henan Province to implement smart crane applications and to introduce remote monitoring technology. The company also developed the multifunctional brewing crane, filling a domestic market gap. In 2021, Dafang was the first in the industry to be certified for unmanned intelligent cranes. In 2022, it undertook a project for a tower crane at a commercial satellite launch site.
3. Manufacturing Capability
Dafang Heavy Machinery is equipped with advanced in-house designed manufacturing equipment, including 1,500-ton press grooving machines, extrusion machines, and roller machines. The company has established leading domestic workshops, including an electrical assembly line, steel pre-processing line, paint finishing line, and China’s first practical single-girder lean production line. Precision machinery includes imported German NILES CNC gear grinding machines and Japanese MAZAK machining centers.
Dafang strictly follows refined manufacturing processes, adhering to the principle of “doing it right the first time, zero defects.” This commitment to quality is deeply ingrained in every employee, ensuring that every product delivered meets the highest standards.
4. Service Assurance
Dafang upholds a “comprehensive, high-quality” service standard, providing users with fast, attentive, and thorough one-stop services. With 24/7 online support, choosing Dafang means complete peace of mind. Just tell us what you need—we’ll take care of the rest.
LP hanging single girder cranes are widely used in workshops, warehouses, logistics centers, and other locations, especially in environments with limited space, cost-saving requirements, and moderate load demands. Thanks to its hanging design, it provides flexible material handling solutions without the need for additional support structures.
The load capacity of LP hanging single girder cranes typically ranges from 1 ton to 10 tons, suitable for medium-load material handling tasks. The exact load capacity can be customized based on customer requirements to ensure it meets actual use demands.
LP hanging single girder cranes can be operated using either ground control or remote control. The operation is simple and adaptable to different working needs, ensuring a safe and efficient working environment.
Yes, LP hanging single girder cranes are especially suitable for working in limited spaces. Its hanging design and lightweight structure allow lifting tasks to be completed without taking up too much space, making it ideal for factory renovations or environments with limited space.
Yes, the LP hanging single girder crane has a simple structure and is easy to maintain. Since all the components of the crane are easily accessible, troubleshooting and part replacement are convenient, reducing maintenance costs and extending the equipment's lifespan.
