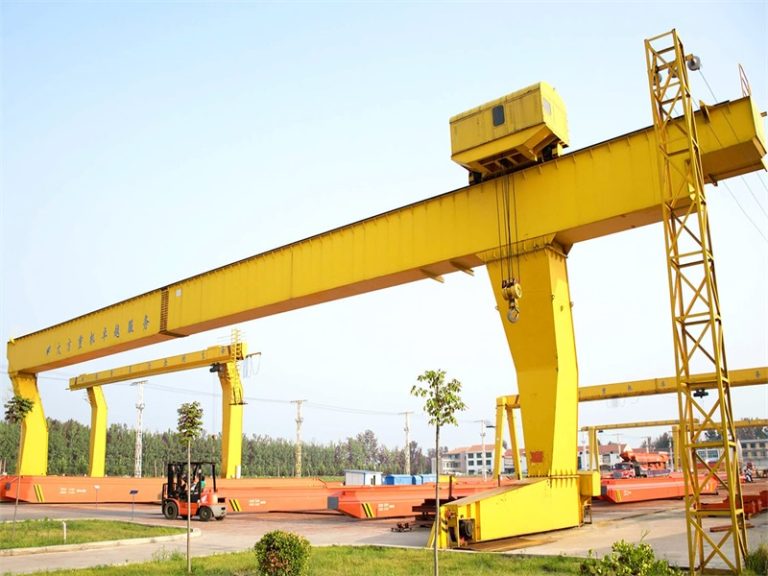

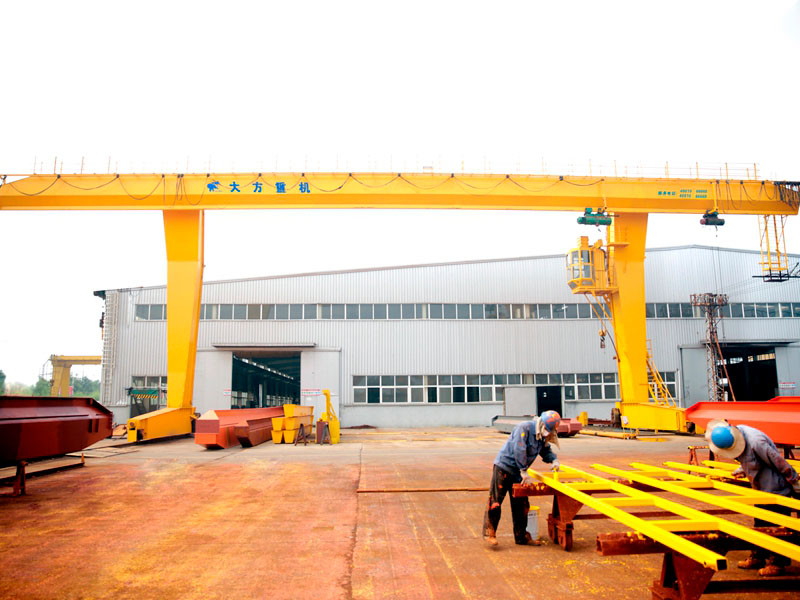

The L-shaped single-girder gantry crane is an effective and flexible lifting device, suitable for medium and small material handling. This gantry crane features a compact structure and simple operation. The main girder adopts an L-shaped cross-section, offering high strength and stiffness, enabling it to bear heavy loads. The L-shaped design reduces the weight of the main girder while ensuring strength, improving overall performance. Its lifting mechanism typically uses CD/MD electric hoists for lifting and moving goods. In addition to the wire rope hoist, users can also choose electric trolleys as the lifting mechanism to achieve greater load capacity. The electric hoist can move laterally along the main girder, enabling precise positioning of goods. One side of the leg is a rigid leg, rigidly connected to the main girder, providing stable support; the other side is a flexible leg that can be adjusted to accommodate track deviations and uneven ground.
It can meet various lifting height and span requirements. The L-shaped single-girder gantry crane is an ideal choice for factories, warehouses, workshops, and other locations.
The L-shaped structure saves space, especially suitable for environments with limited height and area.
Span, height, and lifting capacity can be customized as needed to adapt to various working conditions.
Made of high-quality steel and advanced welding technology, ensuring the equipment is sturdy and durable.
| Lifting capacity | ton | 5 | 10 | ||||||
| Span | meter | 16 | 20 | 30 | 16 | 20 | 30 | ||
| Lifting height | meter | 9 | 9 | ||||||
| Crane travel mechanism | Travel speed | Ground | m/min | 20 | 20 | ||||
| Cabin | 20 | 30 | 40 | 20 | 30 | 40 | |||
| Motor | Ground | 16.3KW | 20.9KW | 27.2KW | 31.6KW | ||||
| Cabin | 20.9KW | 25.3KW | 27.2KW | 31.6KW | |||||
| Speed | Type | CD1 | MD1 | CD1 | MD1 | ||||
| Lifting speed | m/min | 8 | 0.8/8 | 7 | 7/0.7 | ||||
| Traveling speed | m/min | 20 | 20 | ||||||
| Motor | Lifting | ZD1 41-4/7.5 | ZDS1 0.8/7.5 | ZD1 51-4/3 | ZDS1 1.5/13 | ||||
| Traveling | YSE802-4/0.8 | YSE80-4/0.8X2 | |||||||
| Work duty | A3 | A3 | |||||||
| Crane rail recommended | P38 | P38 | P43 | ||||||
| Power supply | 3P 380V 50HZ AC. | 3P 380V 50HZ AC. | |||||||
| Max. wheel pressure | kN | 80 | 90 | 103 | 128 | 140 | 161 | ||
1. Industry Position
Founded in 2006, Dafang Heavy Machinery covers an area of 1,580 acres and employs over 2,600 people. With an annual sales revenue of 3.566 billion RMB, the company focuses on two main business sectors: lifting machinery and steel structures. Major products include single and double girder bridge and gantry cranes, electric hoists, steel structure bridges, prefabricated buildings, and industrial plants. Dafang serves critical sectors such as military industry, aerospace, nuclear power, offshore engineering, metallurgy, and mining. Its products are exported to over 100 countries and regions, including the United States, Russia, and Southeast Asia.
Annually, Dafang manufactures 30,000 single-girder cranes, more than 12,000 double-girder and gantry cranes, and 30,000 electric hoists. Based on production scale, sales volume, and brand recognition, the company ranks among the top three in China’s crane industry.
2. Core Technologies
Dafang’s R&D team consists of over 260 members, including 104 with senior or intermediate engineering qualifications. The company invests 3.8% of its annual sales into technology development. It has obtained 12 international invention patents, 50 national invention patents, 415 utility model patents, and achieved 43 scientific and technological milestones. Dafang was the first in the industry to adopt anti-sway and automatic positioning technologies.
In 2016, Dafang became the first enterprise in Henan Province to implement smart crane applications and to introduce remote monitoring technology. The company also developed the multifunctional brewing crane, filling a domestic market gap. In 2021, Dafang was the first in the industry to be certified for unmanned intelligent cranes. In 2022, it undertook a project for a tower crane at a commercial satellite launch site.
3. Manufacturing Capability
Dafang Heavy Machinery is equipped with advanced in-house designed manufacturing equipment, including 1,500-ton press grooving machines, extrusion machines, and roller machines. The company has established leading domestic workshops, including an electrical assembly line, steel pre-processing line, paint finishing line, and China’s first practical single-girder lean production line. Precision machinery includes imported German NILES CNC gear grinding machines and Japanese MAZAK machining centers.
Dafang strictly follows refined manufacturing processes, adhering to the principle of “doing it right the first time, zero defects.” This commitment to quality is deeply ingrained in every employee, ensuring that every product delivered meets the highest standards.
4. Service Assurance
Dafang upholds a “comprehensive, high-quality” service standard, providing users with fast, attentive, and thorough one-stop services. With 24/7 online support, choosing Dafang means complete peace of mind. Just tell us what you need—we’ll take care of the rest.
Our L-type single-girder gantry cranes can be customized according to different needs, typically lifting between 5 to 50 tons. For special requirements, we can offer higher load capacities.
L-type single-girder gantry cranes are suitable for multiple sectors, including manufacturing, warehouse logistics, construction sites, and port terminals. They are particularly ideal for environments with limited space and offer excellent adaptability.
Due to its simple structural design and high-quality manufacturing materials, the maintenance of L-type single-girder gantry cranes is very convenient. We also offer regular technical support and maintenance services to ensure long-term stable operation of the equipment.
Our L-type single-girder gantry cranes are equipped with multiple safety protection devices, such as overload protection, limit switches, and windproof devices, ensuring stable operation even in harsh environments and protecting the safety of operators.
The span, lifting height, and lifting capacity of the L-type single-girder gantry crane can be customized based on the client's specific needs, ensuring that the equipment perfectly fits your working environment.
