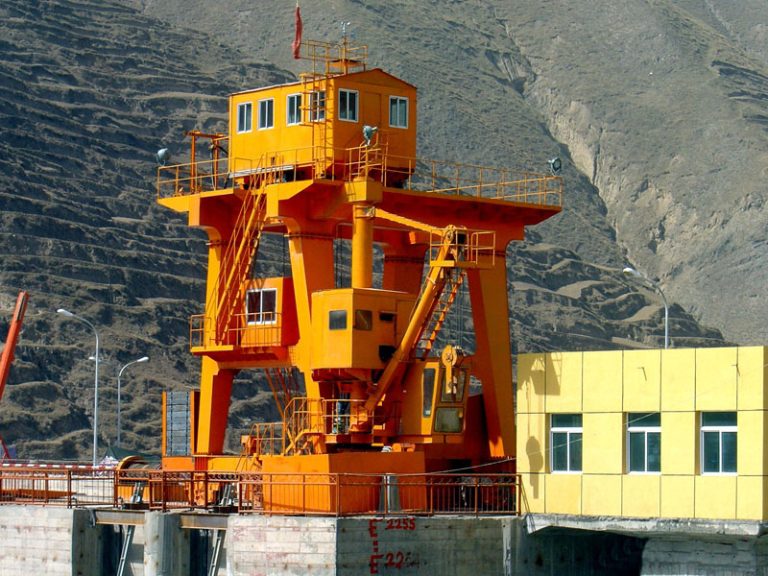

The Headstock gear used on the top of hydropower station is a kind of gantry type hoisting machinery with multiple functions. Mainly used on the top of the hydropower station dam or on the draft tube deck, using for the hoisting, handling of all kinds of gates such as the water inlet gate of the power unit, emergency overhaul gate of the bottom port, trash rack, plate gate of the flood discharge sluice, the installation of the electromechanical device and the convey of the convey of the other equipment on the dam.
The gate hoist is used in various large-scale water supply and drainage, hydraulic, and hydroelectric projects.
It is designed to control the lifting and lowering of various medium and large cast iron or steel gates, enabling their opening and closing. Headstock gears come in many types, including hydraulic hoists, winch-type hoists, gantry Headstock gears, handwheel hoists, electric-hand hoists, hand-crank hoists, screw-type hoists, and double-lifting-point hoists.
| Lifting capacity | KN | 630 | |
| Span | m | 4.5 | |
| Lifting Height | m | 28 | |
| Work duty | A3-A6 | ||
| Speed | Main hoisting | m/ min | 1.57 |
| Crane travelling | m/ min | 19.4 | |
| Total Power(Kw) | kW | 64 | |
| Steel Track Recommended | kW | Qu80 | |
| Max. wheel Load | kN | 577 | |
| Power Supply | kN | Based on your power supply | |
1. Industry Position
Founded in 2006, Dafang Heavy Machinery covers an area of 1,580 acres and employs over 2,600 people. With an annual sales revenue of 3.566 billion RMB, the company focuses on two main business sectors: lifting machinery and steel structures. Major products include single and double girder bridge and gantry cranes, electric hoists, steel structure bridges, prefabricated buildings, and industrial plants. Dafang serves critical sectors such as military industry, aerospace, nuclear power, offshore engineering, metallurgy, and mining. Its products are exported to over 100 countries and regions, including the United States, Russia, and Southeast Asia.
Annually, Dafang manufactures 30,000 single-girder cranes, more than 12,000 double-girder and gantry cranes, and 30,000 electric hoists. Based on production scale, sales volume, and brand recognition, the company ranks among the top three in China’s crane industry.
2. Core Technologies
Dafang’s R&D team consists of over 260 members, including 104 with senior or intermediate engineering qualifications. The company invests 3.8% of its annual sales into technology development. It has obtained 12 international invention patents, 50 national invention patents, 415 utility model patents, and achieved 43 scientific and technological milestones. Dafang was the first in the industry to adopt anti-sway and automatic positioning technologies.
In 2016, Dafang became the first enterprise in Henan Province to implement smart crane applications and to introduce remote monitoring technology. The company also developed the multifunctional brewing crane, filling a domestic market gap. In 2021, Dafang was the first in the industry to be certified for unmanned intelligent cranes. In 2022, it undertook a project for a tower crane at a commercial satellite launch site.
3. Manufacturing Capability
Dafang Heavy Machinery is equipped with advanced in-house designed manufacturing equipment, including 1,500-ton press grooving machines, extrusion machines, and roller machines. The company has established leading domestic workshops, including an electrical assembly line, steel pre-processing line, paint finishing line, and China’s first practical single-girder lean production line. Precision machinery includes imported German NILES CNC gear grinding machines and Japanese MAZAK machining centers.
Dafang strictly follows refined manufacturing processes, adhering to the principle of “doing it right the first time, zero defects.” This commitment to quality is deeply ingrained in every employee, ensuring that every product delivered meets the highest standards.
4. Service Assurance
Dafang upholds a “comprehensive, high-quality” service standard, providing users with fast, attentive, and thorough one-stop services. With 24/7 online support, choosing Dafang means complete peace of mind. Just tell us what you need—we’ll take care of the rest.
It can be used with steel gates, cast iron gates, sluice gates, and others, offering flexible structural compatibility.
Yes, it supports remote operation with optional wireless control systems or PLC remote control modules.
The modular design makes installation simple, and we can also provide on-site guidance if needed.
It is equipped with limit protection, torque protection, and emergency braking devices to ensure safe operation.
