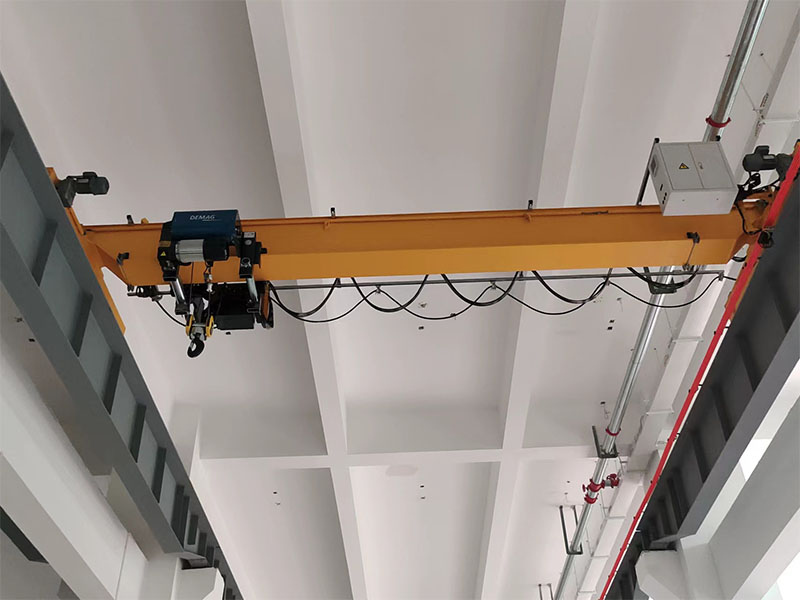

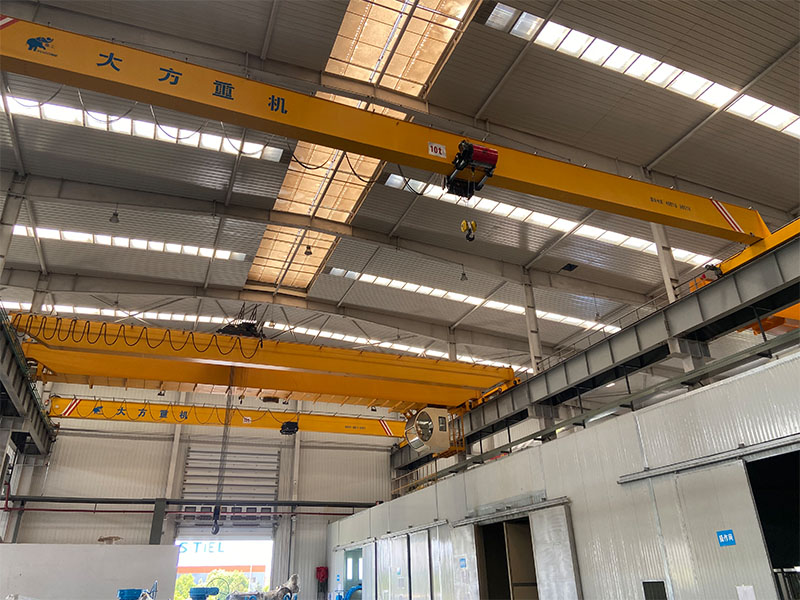

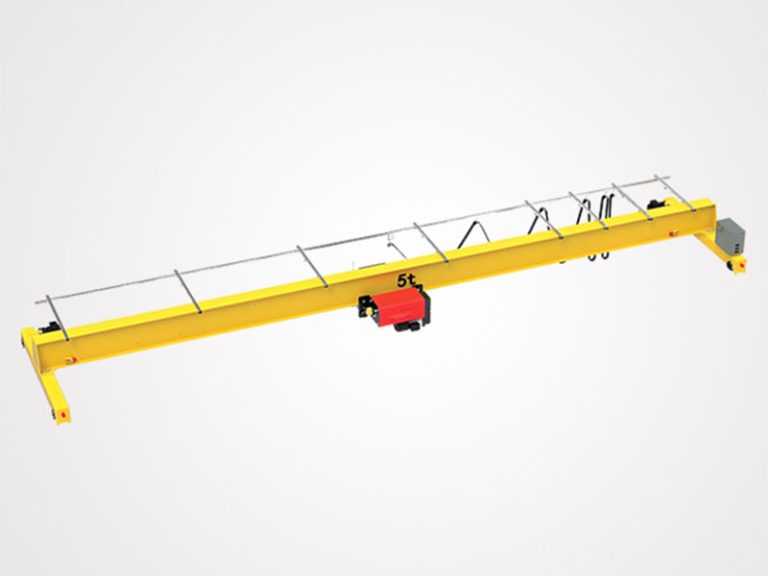

Dafang has designed the HD European single girder overhead crane according to the European FEM standard. The main girder adopts a square box structure. It uses a European wire rope electric hoist as the lifting mechanism. The crane travel and trolley operation employ dual-speed lifting and frequency conversion control.
The European single girder crane can meet users' different needs for precision operations. The lifting capacity ranges from 2 tons to 20 tons. The span ranges from 7.5 meters to 25 meters. The working class is A5, suitable for ambient temperatures of -20 to 40 degrees.
The operation modes include pendant control, remote control, or both modes operating simultaneously to meet requirements of different working conditions. The European single girder crane has wide applications in various workplaces and industries. For example, it is mainly used in workshops, warehouses and other material handling occasions. Applicable industries include machinery manufacturing, metallurgy, petroleum, petrochemicals, ports, railways, power, papermaking, building materials, electronics, etc. It is especially suitable for material handling requiring precise positioning and precision assembly of large components.
From a maintenance perspective, the European crane design considers easy maintenance factors. Key components such as the lifting mechanism and travel mechanism are easy to repair and replace, thereby reducing downtime and ensuring production continuity. At the same time, the selection of high-quality materials extends service life and reduces the need for daily maintenance.
| Product Name | HD European Bridge Crane |
| Work Duty | A5 |
| Span(m) | 10.5~25.5 |
| Max Lifting Height(m) | 6~12 |
| Trolley Traveling Speed(m/min) | 2~20 |
| Crane Traveling Speed(m/min) | 3~30 |
| Work Temperature | -20℃~40℃ |
| Warranty | 3-5 years |
| Power source | 3 Phase AC 380V 50HZ or Customized |
Compact structure with minimal dimensions maximizes space utilization
Variable frequency speed regulation ensures smooth operation
Complete protection devices guarantee high safety reliability
Integrated transmission system delivers outstanding energy savings
Silent drive system with low noise emission
High-quality materials provide strong rigidity with light weight
Saves workshop space and investment costs
Unique travel mechanism design characteristics
1. Industry Position
Founded in 2006, Dafang Heavy Machinery covers an area of 1,580 acres and employs over 2,600 people. With an annual sales revenue of 3.566 billion RMB, the company focuses on two main business sectors: lifting machinery and steel structures. Major products include single and double girder bridge and gantry cranes, electric hoists, steel structure bridges, prefabricated buildings, and industrial plants. Dafang serves critical sectors such as military industry, aerospace, nuclear power, offshore engineering, metallurgy, and mining. Its products are exported to over 100 countries and regions, including the United States, Russia, and Southeast Asia.
Annually, Dafang manufactures 30,000 single-girder cranes, more than 12,000 double-girder and gantry cranes, and 30,000 electric hoists. Based on production scale, sales volume, and brand recognition, the company ranks among the top three in China’s crane industry.
2. Core Technologies
Dafang’s R&D team consists of over 260 members, including 104 with senior or intermediate engineering qualifications. The company invests 3.8% of its annual sales into technology development. It has obtained 12 international invention patents, 50 national invention patents, 415 utility model patents, and achieved 43 scientific and technological milestones. Dafang was the first in the industry to adopt anti-sway and automatic positioning technologies.
In 2016, Dafang became the first enterprise in Henan Province to implement smart crane applications and to introduce remote monitoring technology. The company also developed the multifunctional brewing crane, filling a domestic market gap. In 2021, Dafang was the first in the industry to be certified for unmanned intelligent cranes. In 2022, it undertook a project for a tower crane at a commercial satellite launch site.
3. Manufacturing Capability
Dafang Heavy Machinery is equipped with advanced in-house designed manufacturing equipment, including 1,500-ton press grooving machines, extrusion machines, and roller machines. The company has established leading domestic workshops, including an electrical assembly line, steel pre-processing line, paint finishing line, and China’s first practical single-girder lean production line. Precision machinery includes imported German NILES CNC gear grinding machines and Japanese MAZAK machining centers.
Dafang strictly follows refined manufacturing processes, adhering to the principle of “doing it right the first time, zero defects.” This commitment to quality is deeply ingrained in every employee, ensuring that every product delivered meets the highest standards.
4. Service Assurance
Dafang upholds a “comprehensive, high-quality” service standard, providing users with fast, attentive, and thorough one-stop services. With 24/7 online support, choosing Dafang means complete peace of mind. Just tell us what you need—we’ll take care of the rest.
Electric single girder cranes feature simple structure and cost-effectiveness, ideal for material handling in small/medium workshops and warehouses. Compared to double girder cranes, they offer easier installation, simpler maintenance, and lower energy consumption, especially suitable for routine operations with loads under 500 tons and spans within 25 meters.
Depending on your requirements:
• General workshop: Standard type (Class A3-A5)
• Low headroom: Low-clearance model (saves vertical space)
Yes, our premium models feature VFD systems for stepless speed adjustment (0.5-20m/min), ideal for precision tasks. Standard models have dual-speed control (fast/slow).
We offer complete spare parts service:
• Standard parts: Wire ropes, motors, limit switches (24hr shipping)
All parts are fully compatible with OEM equipment.
