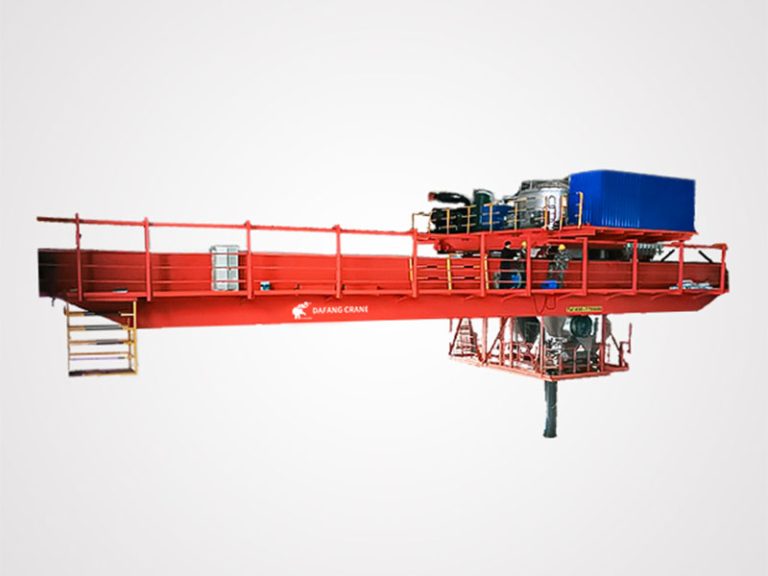

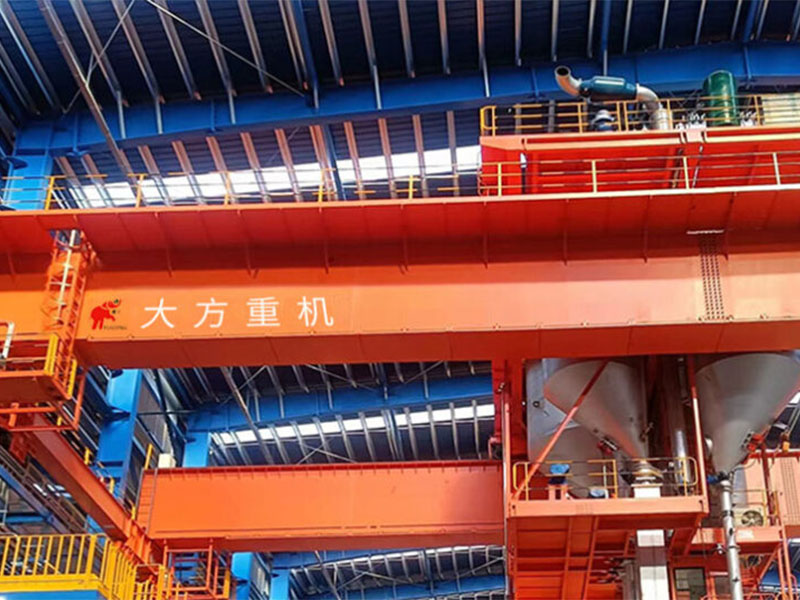

Roasting Multifunctional Overhead Crane is a specialized crane equipped with a vacuum material handling system, dust removal and cooling system, and anode carbon block clamping device. It is designed specifically to serve the anode carbon block roasting process line.
This equipment performs the following primary functions:
A 10-ton electric hoist is installed on the bridge to handle burners and perform maintenance on the roasting furnace.

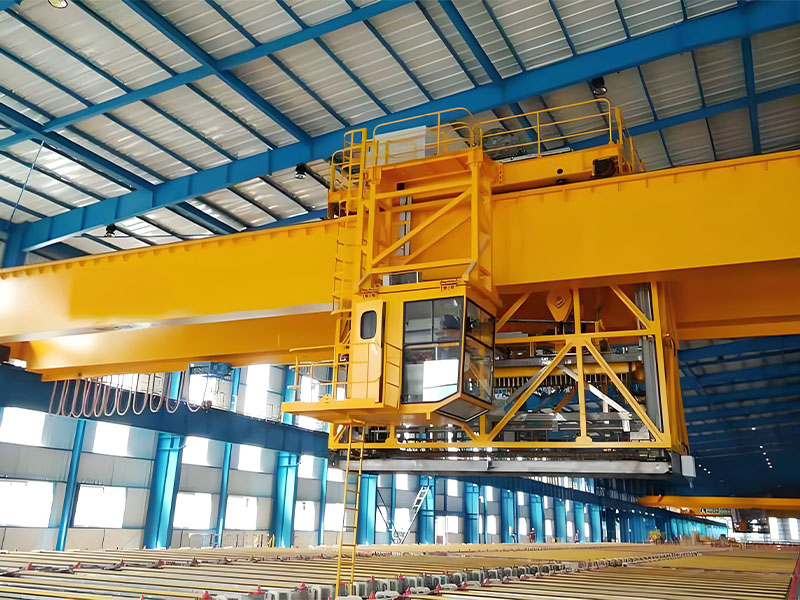

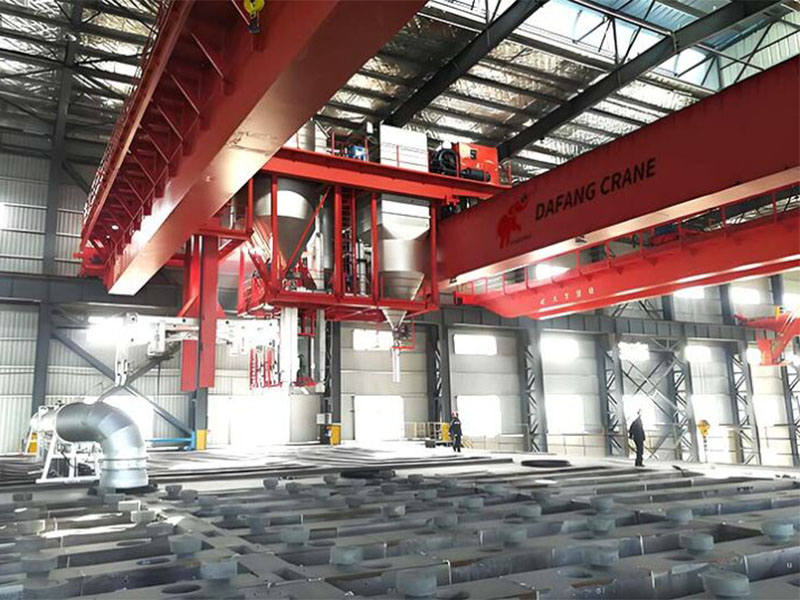

The entire crane consists mainly of the electric trolley, bridge structure, trolley traveling mechanism, electric hoist, and electrical control system. The trolley comprises the suction-unloading system, clamping device, trolley frame, traveling mechanism, and operator’s cab. The trolley is controlled by a frequency inverter and PLC system for precise and efficient operation.
Metallurgical Industry – Anode and Ore Roasting Handling

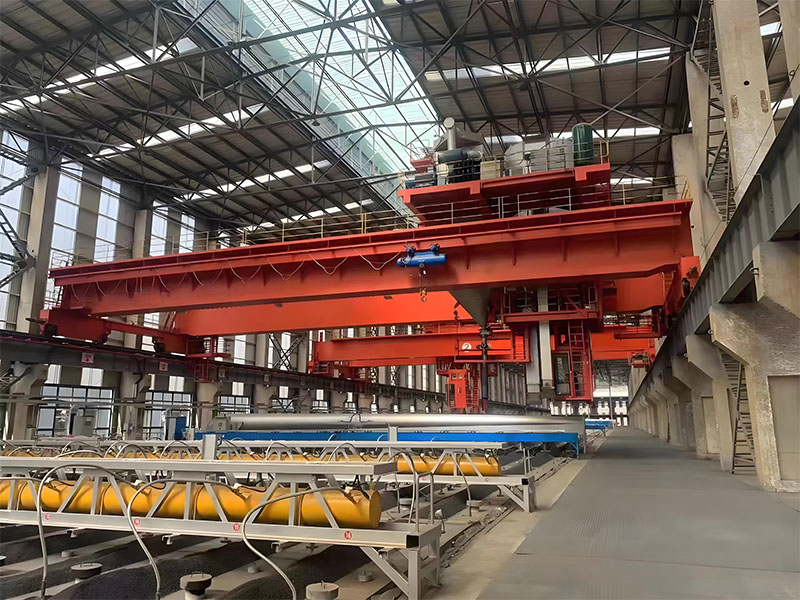

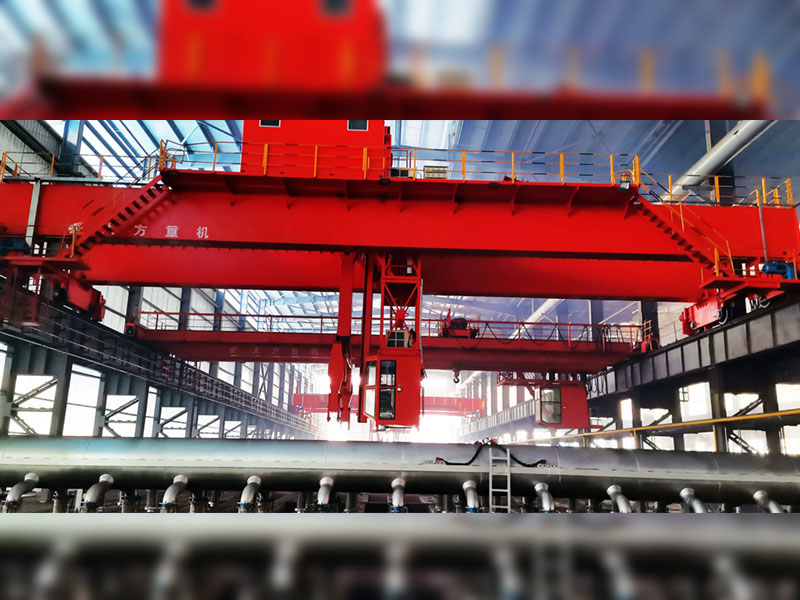

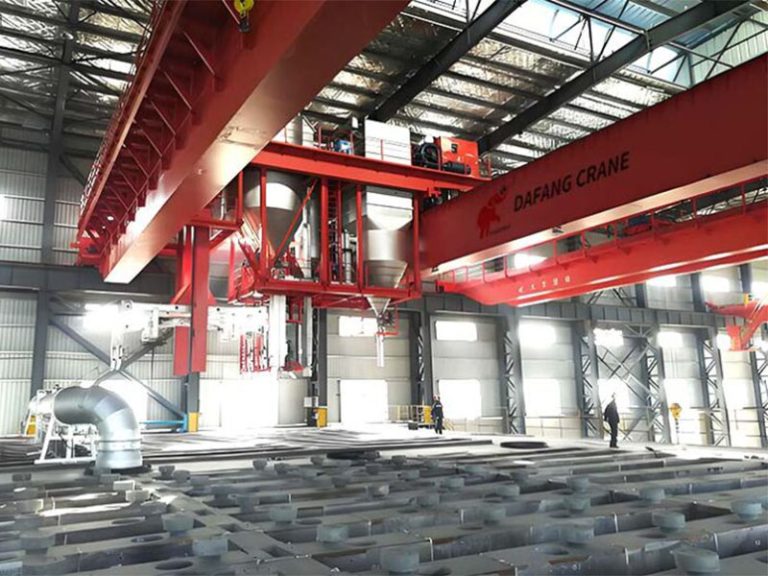

In the anode roasting workshops of aluminum plants, the roasting multifunctional overhead crane plays a crucial role in loading green anodes and unloading baked anodes. It is equipped with high-temperature-resistant vacuum suction pads capable of handling carbon blocks at temperatures up to 1000°C. Meanwhile, on ore roasting lines for iron or nickel, it can also suction hot ore powder from the rotary kiln outlet and transport it to the cooling zone.
Chemical Industry – Catalyst and Lithium Battery Material Handling
During the catalyst roasting process in chemical plants, the crane uses a pneumatic suction system to transport calcined granular materials such as molecular sieves. These materials are often corrosive, so the suction pipelines are lined with stainless steel or ceramic. In the production of lithium battery cathode materials, it effectively transfers roasted lithium iron phosphate powder, preventing human contact with high-temperature materials. The vacuum suction speed is adjustable to accommodate different particle sizes of chemical products.
Building Materials Industry – High-Temperature Handling of Cement and Refractory Materials
In cement plants, the crane suctions clinker particles at approximately 800°C from the rotary kiln outlet and delivers them to the cooler through a sealed pipeline, ensuring no dust leakage throughout the process. In refractory material production, it handles roasted magnesia or high-alumina bauxite powder. The system is equipped with high-capacity vacuum pumps to enable fast suction and transportation of high-density materials.
Equipped with an integrated vacuum pump or pneumatic conveying system, it enables dust-free material transportation. The suction volume is adjustable to accommodate various particle sizes, ranging from fine powders to small lumps.
The suction pipes are made of water-cooled or heat-resistant alloy materials, capable of withstanding temperatures from 300°C to 1200°C. Key components, such as motors and cables, are protected with an IP65 or higher rating.
The roasting multifunctional overhead crane can be equipped with interchangeable tools such as grabs and clamps, achieving an integrated system for both suction and handling. It features automatic control (PLC + sensors), precise positioning, and real-time flow monitoring.
Equipped with explosion-proof motors, overheating alarms, and dust concentration monitoring systems to ensure operational safety.
| Baking Multifunctional Crane | Clamps Crane | Vacuum Loading and Unloading Crane | |
| Crane Span (m) | 34.5 | 34.5 | 34.5 |
| Trolley Crane Speed (m/min) | 2-60 | 2-60 | 2-60 |
| Travel Speed (m/min) | 1.6-40 | 1.6-40 | 1.6-40 |
| Clamp | |||
| Lifting Speed (m/min) | 2-10 | 2-10 | — |
| Lifting Travel (m) | 8.5 | 8.5 | — |
| Lifting Weight (t) | Dual Clamps with a capacity of 2×10 | Dual Clamps with a capacity of 2×10 | — |
| Opening (mm) | 5060 | 5060 | — |
| Speed Control | |||
| Trolley crane | Variable Frequency Drive | Variable Frequency Drive | Variable Frequency Drive |
| Trolley | Variable Frequency Drive | Variable Frequency Drive | Variable Frequency Drive |
| Clamp | Variable Frequency Drive | Variable Frequency Drive | — |
| Vacuum Loading and Unloading Pipe | |||
| Lifting Speed (m/min) | 2.6/16 | — | 2.6/16 |
| Lifting Travel (m) | 9.7/9.7 | — | 9.7/9.7 |
| Loading/Unloading Capacity (t/h) | 65/80 | — | 65/80 |
| Material Box Volume (m3) | 45 | — | 45 |
| Vacuum Pump | |||
| Power (kW) | 160 | — | 160 |
| Wind Pressure (kPa) | -40 | — | -40 |
1. Industry Position
Founded in 2006, Dafang Heavy Machinery covers an area of 1,580 acres and employs over 2,600 people. With an annual sales revenue of 3.566 billion RMB, the company focuses on two main business sectors: lifting machinery and steel structures. Major products include single and double girder bridge and gantry cranes, electric hoists, steel structure bridges, prefabricated buildings, and industrial plants. Dafang serves critical sectors such as military industry, aerospace, nuclear power, offshore engineering, metallurgy, and mining. Its products are exported to over 100 countries and regions, including the United States, Russia, and Southeast Asia.
Annually, Dafang manufactures 30,000 single-girder cranes, more than 12,000 double-girder and gantry cranes, and 30,000 electric hoists. Based on production scale, sales volume, and brand recognition, the company ranks among the top three in China’s crane industry.
2. Core Technologies
Dafang’s R&D team consists of over 260 members, including 104 with senior or intermediate engineering qualifications. The company invests 3.8% of its annual sales into technology development. It has obtained 12 international invention patents, 50 national invention patents, 415 utility model patents, and achieved 43 scientific and technological milestones. Dafang was the first in the industry to adopt anti-sway and automatic positioning technologies.
In 2016, Dafang became the first enterprise in Henan Province to implement smart crane applications and to introduce remote monitoring technology. The company also developed the multifunctional brewing crane, filling a domestic market gap. In 2021, Dafang was the first in the industry to be certified for unmanned intelligent cranes. In 2022, it undertook a project for a tower crane at a commercial satellite launch site.
3. Manufacturing Capability
Dafang Heavy Machinery is equipped with advanced in-house designed manufacturing equipment, including 1,500-ton press grooving machines, extrusion machines, and roller machines. The company has established leading domestic workshops, including an electrical assembly line, steel pre-processing line, paint finishing line, and China’s first practical single-girder lean production line. Precision machinery includes imported German NILES CNC gear grinding machines and Japanese MAZAK machining centers.
Dafang strictly follows refined manufacturing processes, adhering to the principle of “doing it right the first time, zero defects.” This commitment to quality is deeply ingrained in every employee, ensuring that every product delivered meets the highest standards.
4. Service Assurance
Dafang upholds a “comprehensive, high-quality” service standard, providing users with fast, attentive, and thorough one-stop services. With 24/7 online support, choosing Dafang means complete peace of mind. Just tell us what you need—we’ll take care of the rest.
Our suction system features heat-resistant ceramic lining and water-cooled alloy pipes, capable of stably handling materials at temperatures up to 1000°C, meeting the demands of aluminum plants, cement kilns, and other high-temperature operations.
The crane is equipped with a PLC control system and multiple sensors, supporting automated suction, discharge, positioning, and alarm functions. It can be integrated with the client’s MES system to support remote monitoring and unmanned operation.
Yes. We offer suction pipes with stainless steel or ceramic linings, ensuring safe and long-term handling of corrosive materials such as catalysts and lithium iron phosphate.
Absolutely. We offer a variety of suction heads and fixture structures (e.g., vacuum suction cups, mechanical clamps, rotating modules), which can be customized based on your plant layout and roasting process requirements.
The equipment includes explosion-proof motors, overheat protection, dust concentration monitoring systems, and electrical components rated IP65 or higher, ensuring safe operation in dusty and high-temperature environments.
